Components > Graphics Cards

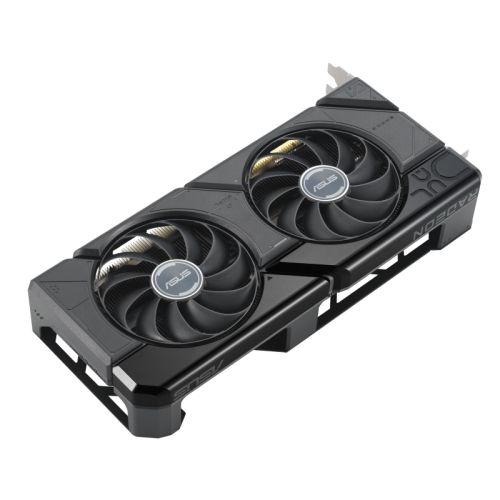

Asus DUAL RX7800 XT OC, PCIe4, 16GB DDR6, HDMI, 3 DP, 2520MHz Clock, Overclocked

+ click images to enlarge

Stock Code

RADRX78XT16ASDUALOC

Manufacturer

ASUS

Manufacturer Code

90YV0JJ1-M0NA00

EAN Number

4711387436165

Printable Version

97 Available

You must be logged in to view pricing and place orders

Chipset Manufacturer

AMD

Interface

PCI Express 4.0

Graphics Chipset

AMD RX 7800 XT

Memory Size

16GB

Memory Type

DDR6

Memory Interface

256-bit

Core Clock

OC mode:
Up to 2520 MHz (Boost Clock)
Up to 2213 MHz (Game Clock)

Default mode:
Up to 2475 MHz (Boost Clock)
Up to 2169 MHz (Game Clock)

Memory Clock

19.5 Gbps

CUDA Cores / Stream Processors

3840 Stream Processors

Outputs

1 x HDMI
3 x DisplayPort

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680 x 4320

Multi-GPU Support

None

Max Display Support

Cooling

Dual Fan
Dual Ball Fan Bearings
Axial-tech Fan Design
0dB Technology

PSU Requirements

750W or greater recommended

Connectors Required

2 x 8-pin PCIe Power

Software

ASUS GPU Tweak III & Drivers

Additional Features

See Overview

Dimensions

279.9 x 133.9 x 49.3 mm

Slot Size

2.47 Slot

Accessories

1 x Thank you card
1 x Speedsetup Manual

Package Type

Retail

Package Weight

2.0000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
