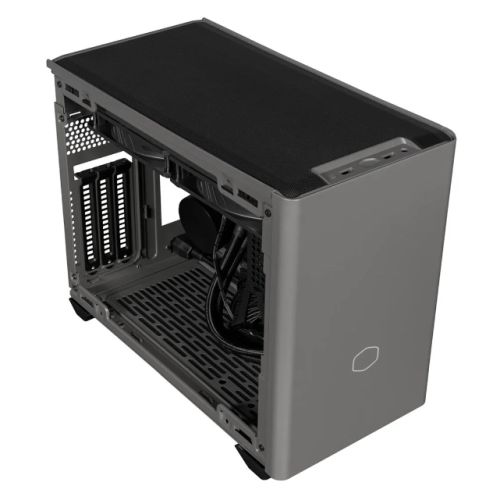

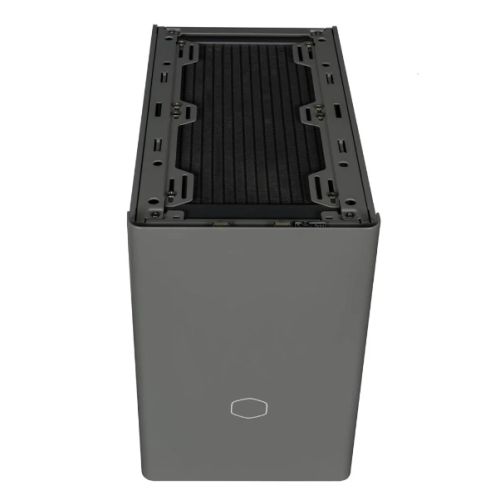

Cooler Master NR200P MAX Case w/ Glass or Mesh Side, Mini ITX, 280mm AIO Cooler, 850W PSU & 2x PWM Fans Included, 3-Slot GPU Support, Black/Grey

+ click images to enlarge

Stock Code

CAI-CMMCNR200PMAX

Manufacturer

COOLER MASTER

Manufacturer Code

NR200P-MCNN85-SL1

EAN Number

4719512123447

Printable Version

19 Available

You must be logged in to view pricing and place orders

Form Factor

Mini ITX

Power Supply Wattage

850 W

Motherboard Support

Mini ITX

Connectors / Controls

2 x USB 3.2 Gen1 Type-A
1 x 3.5mm Headset Jack (Audio + Mic)

Drive Bays

1 x 3.5"/2.5" Combo Drive Bays
2 x 2.5" SSD Drive Bays (Max. 3)

Expansion Slots

3 Expansion Slots

Cooling System

Included:
2 x 140mm SickleFlow PWM Fans
Built-in 280mm Radiator (Up to AM4 & LGA1700 supported)
3rd Gen Cooler Master Pump/CPU Block

Fan Mounts:
Top: 2 x 120 / 140 mm
Bottom: 1 x 120 mm (max 15mm, with 3.5" HDD at the bottom)

Radiator Options:
Top: 240 / 280 mm

Colour

Black

Material

Exterior: SGCC Steel, Mesh, ABS Plastic
Left Side: Tempered Glass or Steel Mesh (both included)

Compatibility

GPU Clearance:
L: 336mm (incl. power connector)
W: 75mm (triple slot)

CPU Clearance:
67 mm

PSU Clearance:
850W Gold certified PSU included
16AWG PCIe fully modular, high efficiency cables

Weight/Dimensions

(LxWxH) 372 x 185 x 292 mm (Incl. Protrusions)
(LxWxH) 360 x 185 x 274 mm (Excl. Protrusions)
Volume: 18.30L

Additional Features

Custom Length Pre-Routed Tubing
1x MasterAccessory Riser Cable PCIe 4.0 x16 - 35mm
Patented Quick Install GPU Panel
Dust Filters: Top Panels

See Overview for more details

Package Weight

6.6000 kg

Warranty

2 Years

Manufacturer Link

Click here for more details from the manufacturer
