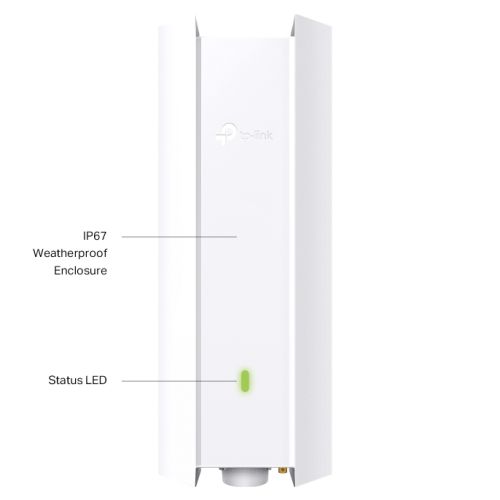

TP-LINK (EAP623-OUTDOOR HD) Omada AX1800 Indoor/Outdoor Wi-Fi 6 Access Point, Dual Band, OFDMA, MU-MIMO, 1024-QAM, PoE+, Mesh

+ click images to enlarge

Stock Code

AP-1800TPEAP623OUTDOORHD

Manufacturer

TP-LINK

Manufacturer Code

EAP623-OUTDOOR HD

EAN Number

4895252506310

Printable Version

5 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Dual Band

Wi-Fi Rating

AX1800

Max Single Band Wi-Fi Rate

1201 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x Gigabit Ethernet Port

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax

Antenna(s)

2 x Internal Dual-Band Omni Antennas
2.4 GHz: 4.0 dBi
5 GHz: 5.0 dBi

Button(s)

Reset

Power Supply

802.3at PoE
48V Passive PoE

Note: PoE adapter is not included

Dimensions

106.5 x 57 x 281 mm

Weatherproof

Yes (Weatherproof)

Frequency

5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps

EIRP

CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP)

Wireless Functions

Mesh
Seamless Roaming(802.11k/v/r)
Automatic Channel Assignment
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDs:16 (8 for each band)
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP

Security

VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
Wireless Isolation between Clients
WPA-Personal/Enterprise
WPA2-Personal/Enterprise
WPA3-Personal/Enterprise
802.1X Support

Wireless Range

Long-range coverage

Management

Omada App
Restore & Backup
Firmware update via Web
NTP
Centralized Management (Requires Omada Controllers)
Cloud Access
Email Alerts
Management MAC Access Control
SNMP: v1, v2c
SSH
Web-based Management

Additional Features

See Overview

Environment

Operating Temperature: -30–70°C (-22–158°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

EAP623-Outdoor HD
Installation Guide
Mounting Kit
Pole/Wall Mounting Kits
Waterproof Kit

Package Type

Retail

Package Weight

1.1600 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
