TP-LINK (EAP650-WALL) AX3000 Wall Plate Wi-Fi 6 Access Point, Dual Band, PoE, 1x GB LAN, OFDMA, Free Software

+ click images to enlarge

Stock Code

AP-3000TPEAP650-WALL

Manufacturer

TP-LINK

Manufacturer Code

EAP650-WALL

EAN Number

4897098682104

Printable Version

65 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Dual Band

Wi-Fi Rating

AX3000

Max Single Band Wi-Fi Rate

2402 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

Uplink: 1 x10/100/1000 Mbps Ethernet Port
Downlink: 1 x 10/100/1000 Mbps Ethernet Port

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Antenna(s)

2 x Dual-Band Antennas
2.4 GHz: 2 x 3 dBi
5 GHz: 2 x 5 dBi

Button(s)

Reset, LED

Power Supply

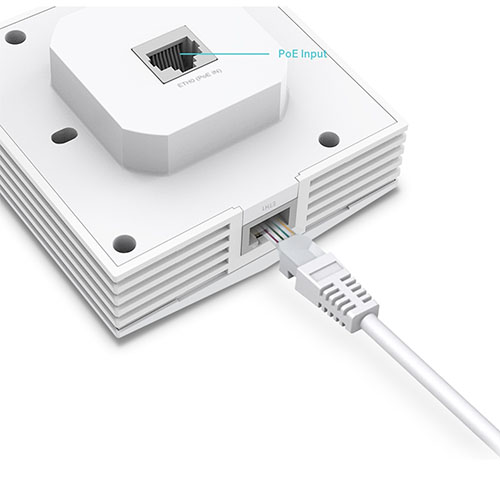

802.3af/at PoE

Power Consumption

11.5 W

Dimensions

86 x 86 x 42.6 mm

Weatherproof

Frequency

2.4 GHz and 5 GHz

EIRP

<20 dBm (2.4GHz, EIRP)
<22 dBm (5GHz band1 & 2, EIRP)
<22 dBm (5GHz band3, EIRP)

Wireless Functions

16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust on dBm)
QoS(WMM)
Seamless Roaming§
Beamforming
Rate Limit
Load Balance
Airtime Fairness

Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP

Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3 Personal/Enterprise

Quality of Service

QoS(WMM)

Management

Omada App
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
System Logging Local/Remote Syslog
SSH
Web-based Management
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning

Additional Features

See Overview

Environment

Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
Installation Guide
Mounting Kits

Package Type

Retail

Package Weight

0.3240 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
