Networking > Range Ext. / Access Points

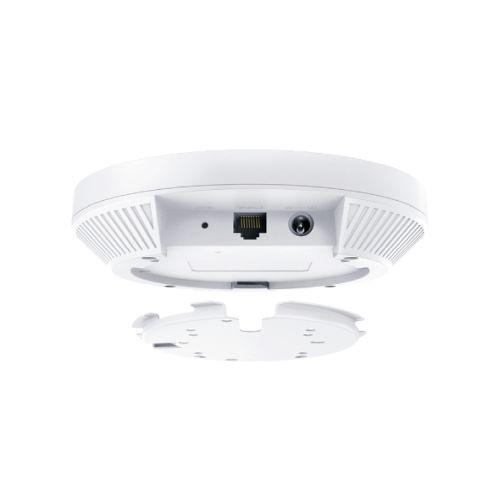

TP-LINK (EAP653) AX3000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, Ultra Slim Design

+ click images to enlarge

Stock Code

AP-3000TPEAP653

Manufacturer

TP-LINK

Manufacturer Code

EAP653

EAN Number

4897098685242

Printable Version

65 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Dual Band

Wi-Fi Rating

AX3000

Max Single Band Wi-Fi Rate

2402 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Antenna(s)

Internal Omni:
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi

Button(s)

Reset

Power Supply

802.3at PoE
12V DC (Power Adapter not included)

Power Consumption

13.5 W

Dimensions

160 x 160 x 33.6 mm

Weatherproof

Frequency

5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps

EIRP

<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<27 dBm(5 GHz, Band3, EIRP)

Wireless Functions

1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)

Seamless Roaming
Omada Mesh§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Quality of Service

QoS(WMM)

Management

Omada App
Centralized Management
Cloud Access
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
System Logging Local/Remote Syslog
SSH
Web-based Management
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning

Additional Features

See Overview

Environment

Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

EAP653
Ceiling/Wall Mounting Kits
Installation Guide

Package Type

Retail

Package Weight

0.7100 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
