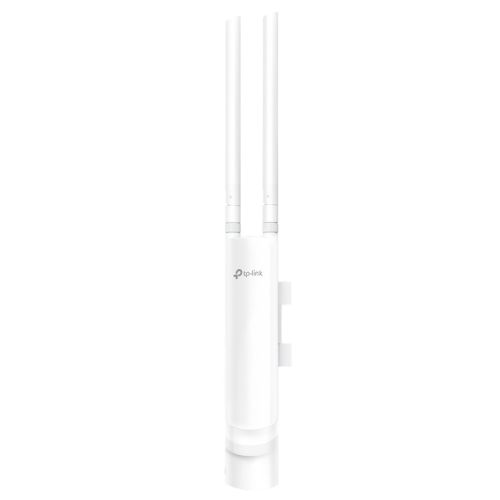

TP-LINK (EAP110-OUTDOOR) Omada 300Mbps Wireless N Outdoor Access Point, Passive PoE, 2x2 MIMO Tech, Free Software

+ click images to enlarge

Stock Code

AP-300TPEAP110-OUTDOOR

Manufacturer

TP-LINK

Manufacturer Code

EAP110-OUTDOOR

EAN Number

6935364097769

Printable Version

41 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Single Band

Wi-Fi Rating

N300

Max Single Band Wi-Fi Rate

300 Mbps

Max Wired Transfer Rate

10/100 Mbps

Interface(s)

1 x Fast Ethernet (RJ-45) Port (Support Passive PoE)

Wireless Standards

IEEE 802.11n/g/b

Antenna(s)

2 x 3dBi External Omni waterproof

Button(s)

Reset

Power Supply

24VDC / 0.6A Passive PoE Supply

Power Consumption

3.12 W

Dimensions

(WxDxH) 216 x 46 x 27 mm

Weatherproof

Yes (Weatherproof)

Frequency

2.4GHz

Wireless Functions

Multiple SSIDs(Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK

Wireless Range

Up to 200 meters

Quality of Service

QoS(WMM)

Management

Omada App
Auranet Controller Software
Centralized Management through controllers
Cloud Access through controllers
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP
System Logging Local/Remote Syslog
Telnet
SSH
Web-based Management: HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN

Additional Features

See Overview

Environment

Operating Temperature: -30°C~65°C (-22°F~149°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents

300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Waterproof Rubber Insert
Waterproof Antennas
Installation Guide

Package Type

Retail

Package Weight

0.9700 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
