Networking > Range Ext. / Access Points
TP-LINK (EAP683 UR) AX6000 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, 2.5G Port, Omada Mesh
+ click images to enlarge
Stock Code
AP-6000TPEAP683UR
Manufacturer
Manufacturer Code
EAP683 UR
EAN Number
8885020621945
3 Available
You must be logged in to view pricing and place orders
Primary Function
Access Point
Bands
Dual Band
Wi-Fi Rating
AX6000
Max Single Band Wi-Fi Rate
4804 Mbps
Max Wired Transfer Rate
2.5 Gbps

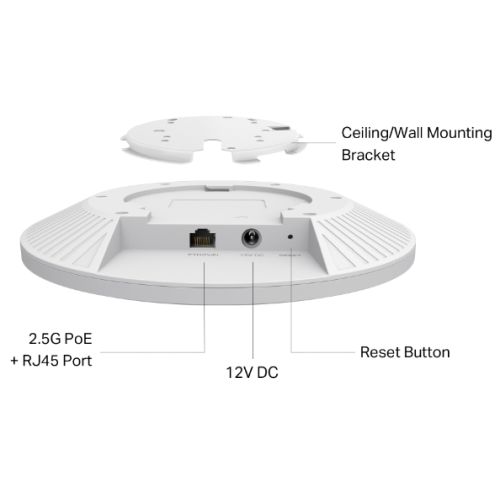

Interface(s)
1 x 2.5 Gigabit PoE+ Port
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Antenna(s)
Internal Omni:
2.4 GHz: 4x 4 dBi
5 GHz: 4x 5 dBi
2.4 GHz: 4x 4 dBi
5 GHz: 4x 5 dBi
Button(s)
Reset
Power Supply
802.3at PoE
12V / 2A DC (Power Adapter IS NOT included)
12V / 2A DC (Power Adapter IS NOT included)
Power Consumption
20.43W
Dimensions
220 x 220 x 32.5 mm
Weatherproof
No
Frequency
5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 1148 Mbps
2.4 GHz: Up to 1148 Mbps
EIRP
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<28 dBm(5 GHz, band3, EIRP)
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO (4*4 MU-MIMO DL&UL)
MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO]
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO (4*4 MU-MIMO DL&UL)
MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO]
HE160 (160 MHz Bandwidth)
Seamless Roaming(802.11k/v/r)
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Seamless Roaming(802.11k/v/r)
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Wireless Range
Ultra-range wireless coverage
Management
Omada App
Centralized Management
Cloud Access
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP v1, v2c, v3
Local/Remote Syslog
SSH
HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning
Centralized Management
Cloud Access
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP v1, v2c, v3
Local/Remote Syslog
SSH
HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning
Additional Features
See Overview
Environment
Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents
EAP683 UR
Ceiling/Wall Mounting Kits
Installation Guide
Ceiling/Wall Mounting Kits
Installation Guide
Package Type
Retail
Package Weight
1.3000 kg
Warranty
Limited Lifetime
Full Box Quantity
6
Manufacturer Link
