Components > Motherboards

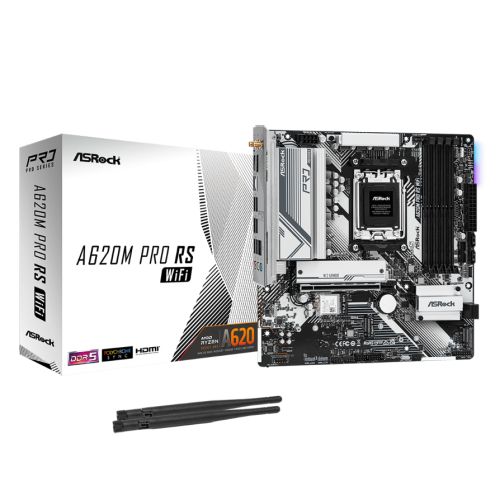

Asrock A620M PRO RS WIFI, AMD A620, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, GB LAN, PCIe4, RGB, 3x M.2

+ click images to enlarge

Stock Code

ASMBA620MPRORSWIFI

Manufacturer

ASROCK

Manufacturer Code

A620M PRO RS WIFI

EAN Number

4710483943065

Printable Version

24 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM5

Chipset

AMD A620

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 6000+

Maximum Memory

256GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16

Storage

4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless

802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.2 + High speed class II
Supports MU-MIMO

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

1 x USB 3.2 Gen1 Type-C (at back)
5 x USB 3.2 Gen1 (3 at back, 2 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front USB 3.2 Gen1 Type-C connector

Back Panel I/O Ports

2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
3 x USB 3.2 Gen1 Type-A
1 x USB 3.2 Gen1 Type-C
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors

1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1

1 x Front Panel Type C USB 3.2 Gen1

Accessories

1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket

Additional Features

See Overview

Package Type

Retail

Package Weight

1.3500 kg

Warranty

3 Year Replacement Warranty

Full Box Quantity
