Components > Motherboards

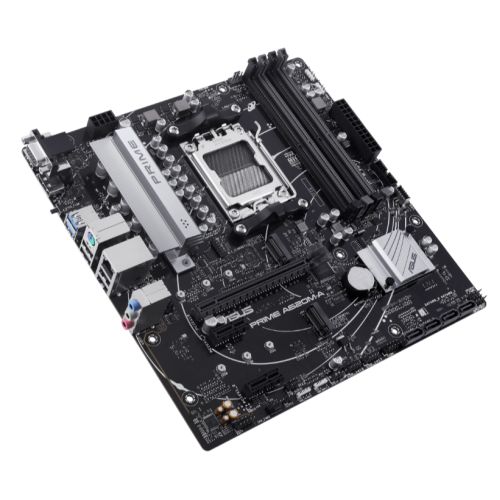

Asus PRIME A620M-A-CSM - Corporate Stable Model, AMD A620, AM5, Micro ATX, 4 DDR5, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

+ click images to enlarge

NOTE:
AMD 8000 series CPUs may require a BIOS update

Stock Code

AUMBA620MACSM

Manufacturer

ASUS

Manufacturer Code

90MB1F10-M0EAYC

EAN Number

4711387176405

Printable Version

14 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM5

Chipset

AMD A620

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II

RAM Slots

4 x DIMM

RAM Speeds

Up to 7600+(OC)

Maximum Memory

192GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16
2 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0

Back Panel I/O Ports

2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS

1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x ACC Express Activation Key Card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.3000 kg

Warranty

3 Years

Full Box Quantity
