Components > Motherboards

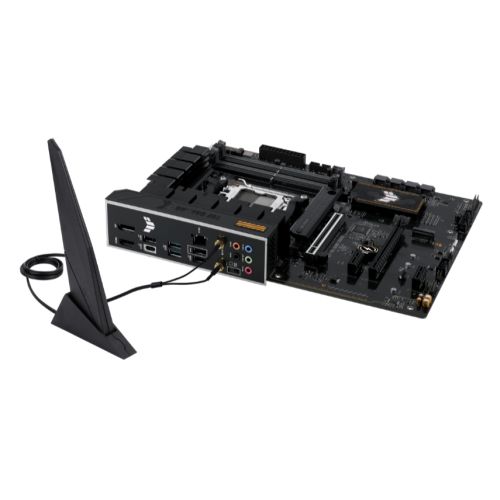

Asus TUF GAMING A620-PRO WIFI, AMD A620, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe4, 2x M.2

+ click images to enlarge

NOTE:
AMD 8000 series CPUs may require a BIOS update

Stock Code

AUMBA620PRTUFWI

Manufacturer

ASUS

Manufacturer Code

90MB1FR0-M0EAY0

EAN Number

4711387206812

Printable Version

5 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD A620

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II

RAM Slots

4 x DIMM

RAM Speeds

Up to 7600+(OC)

Maximum Memory

192GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 3.0 x16 (supports x2 mode)*
2 x PCIe 3.0 x1

*PCIEX16_2 slot will be disabled when either of the PCIEX1 slots is populated

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4

RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10

Wireless

Wi-Fi 6
1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB4 (40Gbps) Type-C
8 x USB 10Gbps (6 Type-A + 2 Type-C)

Front:
1 x USB 20Gbps Type-C (up to 60W PD/QC4+)
1 x USB 20Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

Back Panel I/O Ports

2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 USB Type-C
3 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0

3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x 20-3 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x TUF Gaming sticker
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x TUF Certification card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

2.0000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
