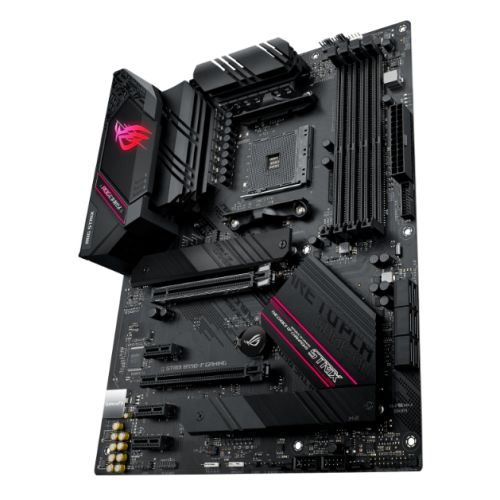

Asus ROG STRIX B550-F GAMING, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, RGB Lighting, M.2

+ click images to enlarge

PLEASE NOTE:

Ryzen 4100, 4500, 4600G, 5500, 5700X, 5800X3D,
5600G & 5700G CPUs may require a BIOS update

Stock Code

AUMBB550FGAMING-STRIX

Manufacturer

ASUS

Manufacturer Code

90MB14S0-M0EAY0

EAN Number

4718017749688

Printable Version

77 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM4

Chipset

AMD B550

CPU Support

Click here for CPU support

*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

3rd Gen AMD Ryzen CPUs:
4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz

Next Gen AMD Ryzen PRO CPUs:
5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz

Maximum Memory

128GB

Graphics

Integrated Graphics Processor*

Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

PCI/PCI Express

1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1

Storage

6 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe

RAID

RAID 0, 1, 10

Wireless

LAN

2.5GB LAN

Audio

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

USB Ports Supported

2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

Back Panel I/O Ports

1 x Intel I225-V 2.5Gb LAN
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen2 (Type-A & C)
4 x USB 3.2 Gen1
2 x USB 2.0
1 x Optical S/PDIF out
1 x BIOS FlashBack Button
5 x Gold-plated audio jacks
ASUS Wi-Fi module

Internal I/O Connectors

1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x AIO_PUMP
1 x AAFP
2 x Aura RGB Strip
1 x Addressable Gen2
1 x USB 3.2 Gen1
2 x USB 2.0
2 x M.2 Socket 1 with M key
6 x SATA 6Gb/s
1 x Thunderbolt

1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
1 x System panel
1 x Thermal sensor
1 x Clear CMOS jumper

Accessories

4 x SATA 6Gb/s cables
1 x ROG Strix sticker
1 x Cable ties pack
1 x Ext cable for Addressable LED
1 x ROG Thank you card
1 x M.2 SSD screw package
1 x M.2 Rubber Package

Additional Features

See Overview

Package Type

Retail

Package Weight

1.6800 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
