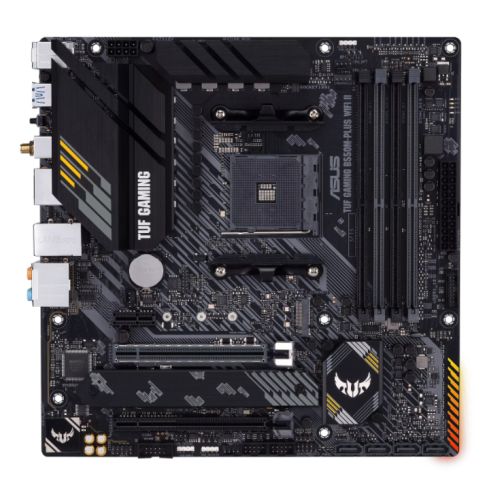

Asus TUF GAMING B550M-PLUS WIFI II, AMD B550, AM4, Micro ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5GB LAN, PCIe4, RGB, 2x M.2

+ click images to enlarge

PLEASE NOTE:

Ryzen 4100, 4500, 4600G, 5500, 5700X, 5800X3D,
5600G & 5700G CPUs may require a BIOS update

Stock Code

AUMBB550MPLUS-TUF-WI2

Manufacturer

ASUS

Manufacturer Code

90MB19Y0-M0EAY0

EAN Number

4711081305705

Printable Version

34 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

AMD AM4

Chipset

AMD B550

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 4866(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics Processor*
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe

RAID

Support RAID 0, 1, 10

Wireless

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth 5.2

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

Back Panel I/O Ports

2 x USB 3.2 Gen2 (Type-A & C)
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Addressable Gen2
2 x AURA RGB
1 x Clear CMOS

1 x COM Port
1 x Front Panel Audio
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
1 x Support DVD
1 x TUF Certification card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.4600 kg

Warranty

3 Years
