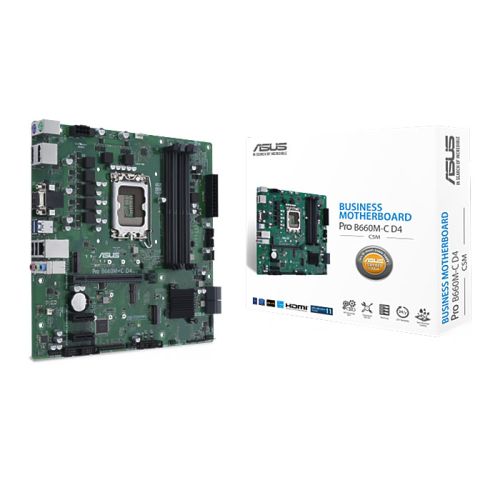

Asus PRO B660M-C D4-CSM - Corporate Stable Model, Intel B660, 1700, Micro ATX, 4 DDR4, VGA, HDMI, 2 DP, PCIe4, 2x M.2

+ click images to enlarge

NOTE:
Intel 13th & 14th gen CPUs may require a BIOS update

Stock Code

AUMBB660MCCSMPROD4

Manufacturer

ASUS

Manufacturer Code

90MB19B0-M1EAYC

EAN Number

4711081509431

Printable Version

7 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel B660

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 5000(OC)

Maximum Memory

128GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
2 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16
2 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x USB 3.2 Gen1 Type-C front panel connector

Back Panel I/O Ports

2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
2 x DisplayPort
1 x HDMI
1 x D-Sub
1 x Intel 1Gb Ethernet
3 x Audio jacks
1 x PS/2 keyboard
1 x PS/2 mouse

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Clear CMOS
1 x Chassis Intrude
2 x COM Port

1 x Front Panel Audio
1 x COM debug
1 x LPT
1 x Mono-out (with Amp IC)
1 x M.2 (Key E)
1 x SMBUS
1 x Speaker
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
1 x Support DVD
1 x ACC Express Activation Key Card
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

0.9500 kg

Warranty

3 Years
