Components > Motherboards

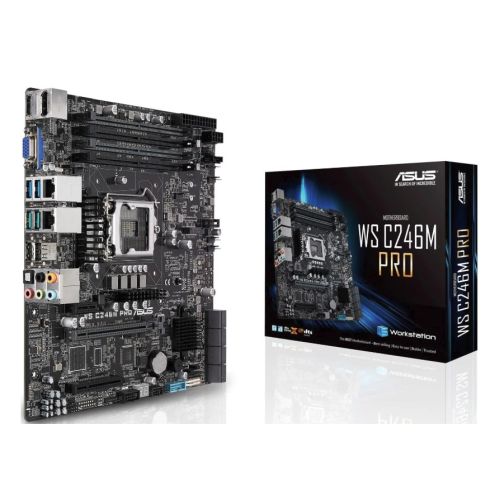

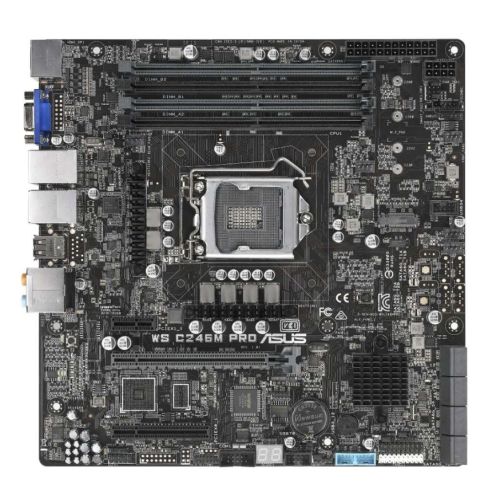

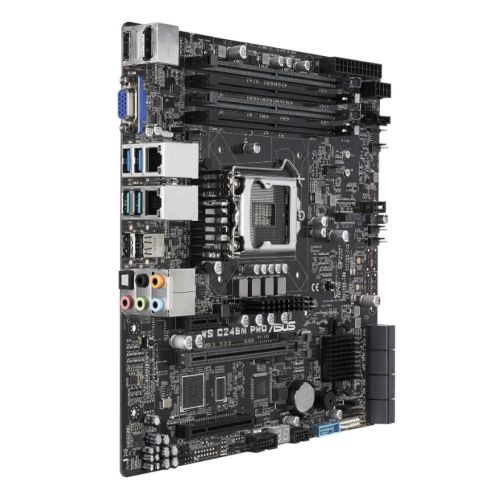

Asus WS C246M PRO Rack-Optimized Workstation, Intel C246, 1151, Micro ATX, VGA, HDMI, DP, Dual LAN, M.2
+ click images to enlarge
PLEASE NOTE:
For Coffee Lake 8th & 9th gen CPUs only
Stock Code
AUMBC246MPRO-WS
Manufacturer
Manufacturer Code
90SW00E0-M0EAY0
EAN Number
4712900981636
Out of Stock: Pre-Order Only
You must be logged in to view pricing and place orders
Motherboard Type
Server / Workstation
Form Factor
Micro ATX
Socket
Intel 1151 - Coffee Lake
Chipset
Intel C246
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
2666/2400/2133 MHz
Maximum Memory
64GB
Graphics
Supports Intel HD Graphics
Graphics Ports
1 x VGA
1 x HDMI
1 x DisplayPort
1 x HDMI
1 x DisplayPort
Multi-GPU Support
-
PCI/PCI Express
Slot Location 1 : PCI-E x1 (Gen2 X1 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X4 Link)
Storage
8 x SATA III
1 x M.2 (2280/2260/2242)
1 x M.2 (2280/2260/2242)
RAID
Supported
Wireless
-
LAN
Dual GB LAN
USB Ports Supported
2 x USB 3.1 Gen 2 Type-A (at back)
4 x USB 3.1 Gen 1 (2 at back, 2 at mid-board)
6 x USB 2.0 ports (2 at back, 4 at mid-board)
4 x USB 3.1 Gen 1 (2 at back, 2 at mid-board)
6 x USB 2.0 ports (2 at back, 4 at mid-board)

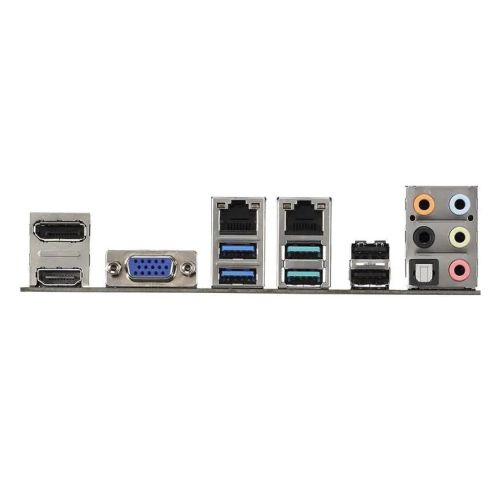

Back Panel I/O Ports
2 x USB 3.1 ports (Type A)
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x HDMI
1 x DisplayPort
1 x VGA
2 x RJ-45 ports
8-channel Audio I/O ports
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x HDMI
1 x DisplayPort
1 x VGA
2 x RJ-45 ports
8-channel Audio I/O ports
Internal I/O Connectors
2 x USB 2.0 pin header
1 x USB 3.0 pin header
1 x M.2
1 x PSU Power
1 x COM port
1 x TPM
1 x S/PDIF Out
1 x USB 3.0 pin header
1 x M.2
1 x PSU Power
1 x COM port
1 x TPM
1 x S/PDIF Out
Additional Features
See Overview
Package Type
Retail
Package Weight
0.9100 kg
Warranty
3 Years
Full Box Quantity
5
