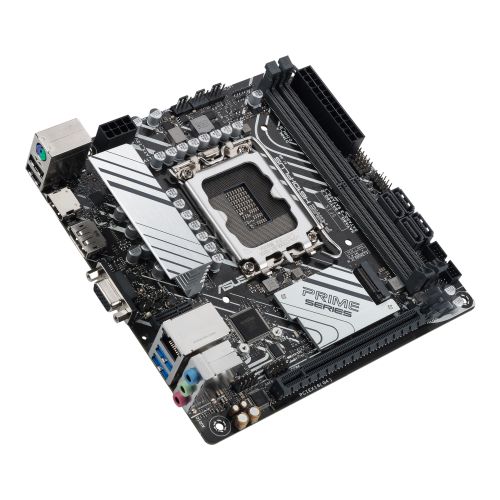

Asus PRIME H610I-PLUS-CSM - Corporate Stable Model, Intel H610, 1700, Mini ITX, 2 DDR5, VGA, HDMI, DP, 1x M.2

+ click images to enlarge

NOTE:
Intel 13th & 14th gen CPUs may require a BIOS update

Stock Code

AUMBH610IPLCSMPR

Manufacturer

ASUS

Manufacturer Code

90MB1GB0-M0EAYC

EAN Number

4711387330500

Printable Version

2 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

Intel 1700

Chipset

Intel H610

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory*
Supports Intel Extreme Memory Profile (XMP)
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

RAM Slots

2 x DIMM

RAM Speeds

Up to 5600MHz

Maximum Memory

96GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

Multi-GPU Support

PCI/PCI Express

1 x PCIe 4.0 x16

Storage

4 x SATA III
1 x M.2 (2260/2280) - SATA & PCIe 3.0 x4

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Back Panel I/O Ports

2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x V-M.2 (Key E)
1 x Intel 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
1 x USB 2.0
1 x Clear CMOS
1 x COM Port

1 x Front Panel Audio
1 x Mono-out (with Amp IC)
1 x SMBUS
1 x Speaker
1 x SPI TPM(14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x Vertical M.2 Key E bracket set
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

0.4490 kg

Warranty

3 Years

Full Box Quantity
