Components > Motherboards

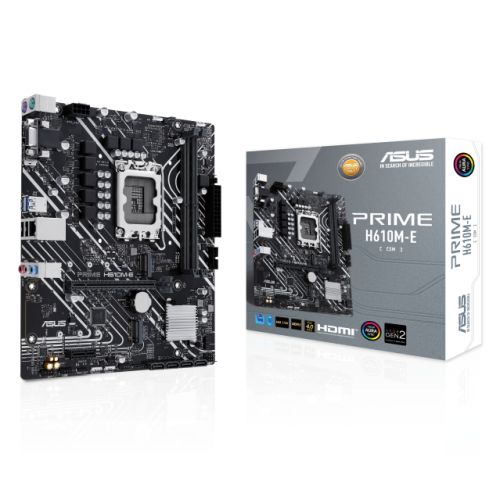

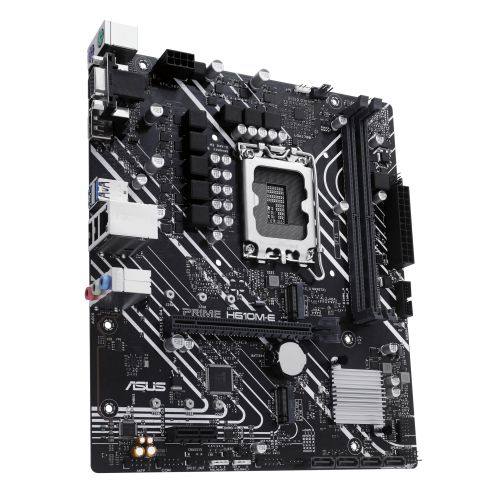

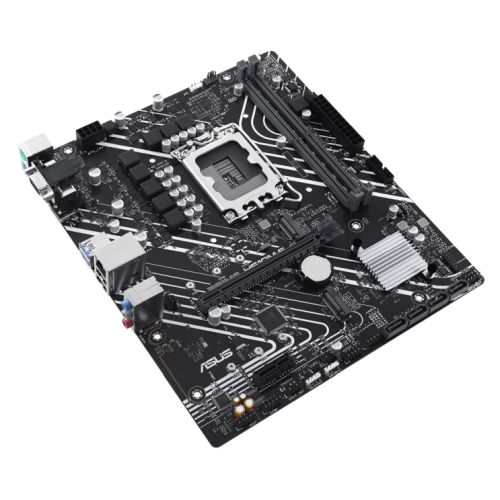

Asus PRIME H610M-E-CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, DP, PCIe4, 2x M.2

+ click images to enlarge

NOTE:
Intel 13th & 14th gen CPUs may require a BIOS update

Stock Code

AUMBH610MECSMPR

Manufacturer

ASUS

Manufacturer Code

90MB1G10-M0EAYC

EAN Number

4711387259795

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1700

Chipset

Intel H610

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)

RAM Slots

2 x DIMM

RAM Speeds

Up to 5600 MHz

Maximum Memory

96GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 4.0 x16
1 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
1 x M.2 (2242/2260/2280) - PCIe 3.0 x2

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
2 x USB 3.2 Gen1
3 x USB 2.0

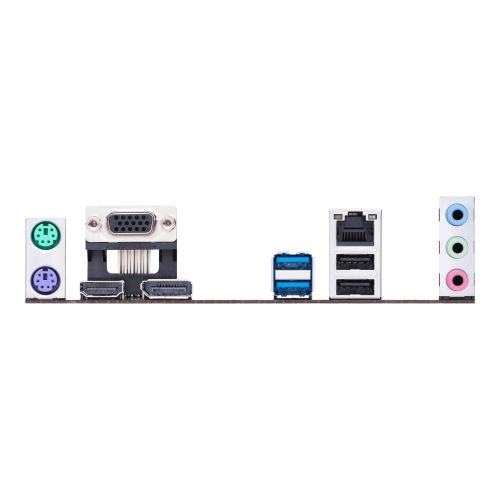

Back Panel I/O Ports

2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Aura RGB
3 x Addressable Gen2
1 x Clear CMOS
1 x Front Panel Audio

1 x COM Port
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

0.5070 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
