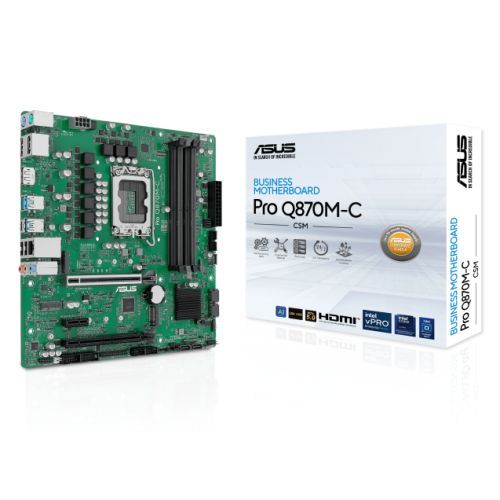

Asus PRO Q870M-C-CSM - Corporate Stable Model, Intel Q870, 1851, Micro ATX, 4 DDR5, HDMI, 2 DP, GB LAN, 2x M.2

+ click images to enlarge

Stock Code

AUMBQ870MCCSMPRO

Manufacturer

ASUS

Manufacturer Code

90MB1KEP-M0EAYC

EAN Number

4711387880586

Printable Version

10 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1851

Chipset

Intel Q870

CPU Support

Supports Intel Core Ultra Processors (Series 2)

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
DIMM Fit
Supports Intel XMP

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

RAM Slots

4 x DIMM

RAM Speeds

Up to 6400 MT/s

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
2 x DisplayPort

PCI/PCI Express

Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16

Intel B860 Chipset:
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1

Storage

4 x SATA III
2 x M.2

Intel Core Ultra CPUs (Series 2):
M.2_1 (2242/2260/2280) - PCIe 5.0 x4

Intel B860 Chipset:
M.2_2 (2242/2260/2280) - PCIe 4.0 x4

RAID

Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10

Wireless

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
1 x USB 10Gbps Type-C
2 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
2 x USB 2.0

Front:
1 x USB 10Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0

Back Panel I/O Ports

1 x USB 10Gbps Type-C
2 x USB 10Gbps Type-A
1 x USB 5Gbps Type-A
2 x USB 2.0
2 x DisplayPort
1 x HDMI
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x Intel 1Gb Ethernet
3 x Audio jacks

Internal I/O Connectors

1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V CPU
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 10Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0
1 x Clear CMOS
1 x Chassis Intrude
2 x COM Port

1 x Front Panel Audio
1 x COM debug
1 x DIS ME CPU
1 x DIS ME PCH
1 x LPT
1 x Mono-Out Audio (with Amp IC)
1 x M.2 (Key E)
1 x Speaker
1 x 10-1 pin Front Panel System

Accessories

2 x SATA 6Gb/s cables
1 x Screw package for M.2 SSD
1 x I/O Shield
1 x M.2 Key E screw package
1 x ACC Express Activation Key Card
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

0.8890 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer

Micro-ATX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced System Security: A self-recovering BIOS, TPM to safeguard PCs and NIST SP 800-193 compliance
Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C®
DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers

Pro

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

Learn more

ASUS Control Center Express

ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60

Optimize IT endpoint management - Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.
Automate IT maintenance - Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.
Securely manage all of endpoints - Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.

Learn more

Internationally Certified Business Motherboard

ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.

DDR5 Support

This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.

PCIe 5.0 SafeSlot

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.

PCIe M.2 5.0

PCIe M.2 5.0 supports data-transfer speeds of up to 128Gbps .This enables quicker boot-up and app load times with OS or application drives.

USB 10Gbps Type-C®

A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C® port with ultrafast USB 10Gbps for transmission speeds of up to 10Gbps.

Dual DlMM clips

Dual memory clips could provide double clamping force and prevent the memories jumping during transportation.

Asus Shield

Enhances system security from bottom to top

ASUS Self-recovering BIOS - ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
Trusted Platform Module(TPM) - Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
Certified NIST SP 800-147 and NIST SP 800-193 - ASUS Business motherboard is certified by the national computer security standards.
ASUS Secure Boot - ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

ASUS Self-recovering BIOS

The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.

Ensures safe BIOS updates
Reduces maintenance frequency and costs
Requires no extra software
Provides automatic update failure detection and recovery

Asus Reliant

Ensures consistent performance with the finest components and rigorous reliability testing

Anti-moisture Coating - An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
Anti-sulfur Resistors - Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.
Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability. Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's threetimes longer than ordinary panels.
Overvoltage Protection - An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
ESD Guards - ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.
LANGuard - Pumped-up throughput. 2.5X higher surge tolerance. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Event Log

A built-in event log enables easier troubleshooting by capturing useful system information

BIOS updates - Update status, latest version and update time
AC power loss - Abnormal power loss events
RTC reset - Time of real-time-clock (RTC) reset
Chassis intrusion - Record of when chassis is opened
Hardware changes - Modifications to CPU, memory or HDDs
Hardware status - USB over current, CPU over temperature, and CPU over voltage events

ASUS Commercial BIOS Kit

ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

BIOS Value Edit Tool - Customize the BIOS options
BIOS Boot Logo Tool - Brand your builds with a customized boot logo
OEM Activation (OA) Tools - Add or remove the OEM Activation key
Desktop Management Interface (DMI) - Easily add customer information, such as company name, to the BIOS
Intel® Management Engine (Intel® ME) Driver - Update the Management Engine without flashing the whole BIOS

Asus Serviceability

Facilitate the assembly process and enable efficient troubleshooting

Q-LED - The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
COM Debug header - This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card.
Box headers - All USB headers are box style, enabling fast connector installation and preventing pin damage.
Fix-position connectors - Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.
