Components > Motherboards

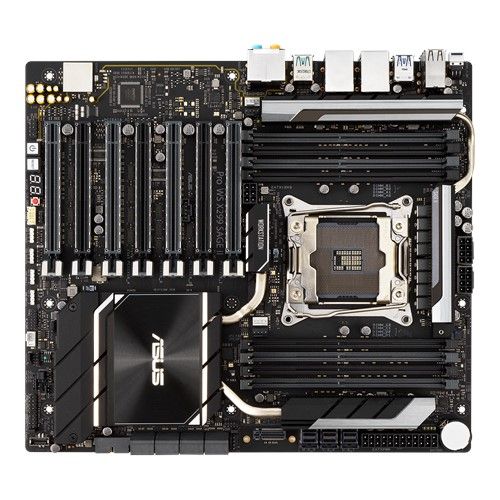

Asus PRO WS X299 SAGE II, Workstation, Intel X299, 2066, CEB, 7 x PCIe, U.2, Dual 2.5G LAN, AI Overclocking, 2x M.2

+ click images to enlarge

Stock Code

AUMBX299PROSAGE2-WS

Manufacturer

ASUS

Manufacturer Code

90SW00U0-M0EAY0

EAN Number

4718017322362

Printable Version

Out of Stock: ETA 26/11/2024

You must be logged in to view pricing and place orders

Motherboard Type

Server / Workstation

Form Factor

CEB

Socket

Intel 2066

Chipset

Intel X299

CPU Support

Click here for CPU support

RAM Technology

DDR4 (Quad Channel)

RAM Slots

8 x DIMM

RAM Speeds

4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400 MHz

Maximum Memory

256GB

Graphics

Graphics Ports

Multi-GPU Support

Supports NVIDIA 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology

PCI/PCI Express

7 x PCIe 3.0/2.0 x16

Storage

8 x SATA III
1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe
1 x M.2 Socket 3 (2242/2260/2280) - PCIe
3 x U.2

RAID

RAID 0, 1, 5, 10

Wireless

LAN

Dual 2.5GB LAN

Audio

Realtek S1200A 7.1-Channel High Definition Audio CODEC

USB Ports Supported

2 x USB 3.2 Gen2 Type-A & C (at back)
1 x USB 3.2 Gen2 (at mid-board)
8 x USB 3.2 Gen1 Type-A (6 at back, 2 at mid-board)
4 x USB 2.0 (at mid-board)

Back Panel I/O Ports

2 x LAN (RJ45)
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
6 x USB 3.2 Gen1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS FlashBack Button(s)
1 x 8-channel Audio I/O

Internal I/O Connectors

2 x CPU Fan
2 x Chassis Fan
2 x Addressable RGB
1 x AAFP
2 x Aura RGB Strip
3 x M.2 Socket 3 with M key,
1 x TPM
8 x SATA 6Gb/s
1 x VROC_HW_Key
1 x AIO_PUMP
1 x Thunderbolt
1 x 24-pin EATX

2 x 8-pin ATX 12V
1 x Power-on button
1 x Reset button
1 x Clear CMOS button
3 x U.2
1 x System panel
1 x COM port
1 x W_Pump+
1 x Thermal sensor
1 x CPU_OV jumper

1 x M.2 Fan
1 x 6-pin ATX 12V
1 x USB 3.2 Gen2
1 x USB 3.2 Gen1
3 x U.2 LED switch

Accessories

Addressable LED ext cable
1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cabl
8 x SATA 6Gb/s cable
1 x M.2 screws
1 x MOS Cooling kit (fan bracket & 40mm fan)
1 x 3-Way SLI bridge
1 x 4-Way SLI bridge
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-connector (0 in 1)

Additional Features

See Overview

Package Type

Retail

Package Weight

2.3500 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
