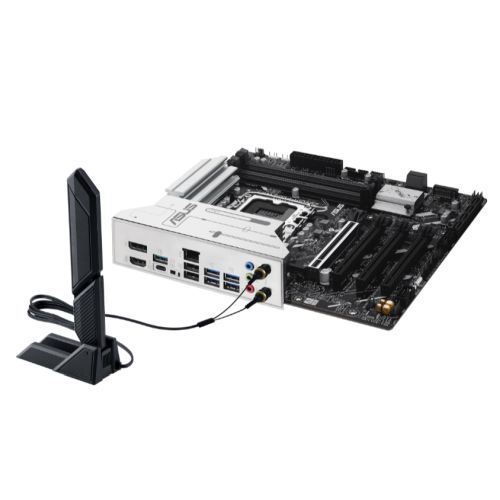

Asus PRIME Z890M-PLUS WIFI, Intel Z890, 1851, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, 3x M.2

+ click images to enlarge

Stock Code

AUMBZ890MPLPRWI

Manufacturer

ASUS

Manufacturer Code

90MB1J80-M0EAY0

EAN Number

4711387755419

Printable Version

6 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1851

Chipset

Intel Z890

CPU Support

Support Intel Core Ultra Processors (Series 2)
Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Supports Intel XMP
Supports DIMM FIT
ASUS Enhanced Memory Profile III

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

RAM Slots

4 x DIMM

RAM Speeds

Up to 7600+MT/s (OC)

Maximum Memory

192GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort
1 x USB 20Gbps Type-C supports DisplayPort video output

PCI/PCI Express

Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16

Intel Z890 Chipset:
1 x PCIe 4.0 x16 (supports x4 mode)
2 x PCIe 4.0 x16 (support x1 mode)

Storage

6 x SATA III
3 x M.2

Intel Core Ultra CPUs (Series 2):
M.2_1 (2280) - PCIe 5.0 x4

Intel Z890 Chipset:
M.2_2 (2280) - PCIe 4.0 x4
M.2_3 (2280) - PCIe 4.0 x4

RAID

Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5

Wireless

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
1 x USB 20Gbps Type-C with DP Alt mode
1 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
2 x USB 2.0

Front:
1 x USB 5Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0

Back Panel I/O Ports

1 x USB 20Gbps Type-C with DP Alt mode
1 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V CPU
1 x 4-pin +12V CPU
3 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 5Gbps Type-C
1 x USB 5Gbps

2 x USB 2.0
3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port header
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 10-1 pin Front System Panel
1 x Thunderbolt (USB4)

Accessories

2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
3 x Screw packages for M.2 SSD
1 x Quick start guide

Additional Features

See Overview

Package Type

Retail

Package Weight

1.0500 kg

Warranty

3 Years
