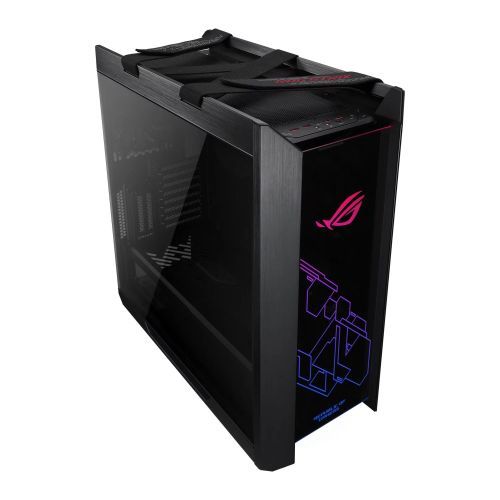

Asus ROG Strix Helios RGB Gaming Case w/ Tempered Glass Windows, E-ATX, GPU Braces, USB-C, Fan/RGB Controls, Carry Handles

+ click images to enlarge

Stock Code

CAA-ASHELIOS

Manufacturer

ASUS

Manufacturer Code

90DC0020-B39000

EAN Number

4718017245791

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Form Factor

E-ATX

Power Supply Wattage

No PSU

Motherboard Support

E-ATX, ATX, Micro ATX, Mini ITX

Connectors / Controls

1 x USB 3.1 Gen 2 (Type-C)
4 x USB 3.1 Gen 1
1 x Headphone
1 x Microphone
LED & Fan Control Buttons

Drive Bays

2 x Int x 2.5"/3.5" Combo Bay
4 x Int x 2.5” Bay

Click here for compatible HDD cage kit

Expansion Slots

8+2 (additional vertical)

Cooling System

Included:
3 x front 140mm fans
1 x rear 140mm fan

Optional:
3 x front 120/140mm fans
3 x top 120 / 2 x 140mm fans
1 x rear 120/140mm fans

Water Cooling options:
Front: 120/140/240/280/360/420 mm
Top 120/140/240/280/360 mm
Rear: 120/140mm

Colour

Black

Material

Refined brushed-aluminum frame
3 x 4mm, smoked tempered-glass panels

Compatibility

Max GX Card length: 450mm*
*Riser Cable above 200mm in length is required for one GPU install in vertical position

Max CPU Cooler height: 190mm

Max PSU length: 220mm

Weight/Dimensions

18 kg
250 x 565 x 591 mm (WxDxH)

Additional Features

See Overview

Package Weight

21.5000 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
