Components > Cases

Fractal Design Define R5 (Black Solid) Silent Gaming Case, ATX, 2 Fans, Fan Controller, Configurable Front Door, Ultra Silent Design

+ click images to enlarge

Stock Code

CAA-FRDER5

Manufacturer

FRACTAL

Manufacturer Code

FD-CA-DEF-R5-BK

EAN Number

7350041082583

Printable Version

17 Available

You must be logged in to view pricing and place orders

Form Factor

ATX

Power Supply Wattage

No PSU

Motherboard Support

ATX, Micro ATX, Mini ITX

Connectors / Controls

2 x USB 3.0
2 x USB 2.0
Audio in/out
Power button with LED (blue)
HDD activity LED (blue)
Reset button

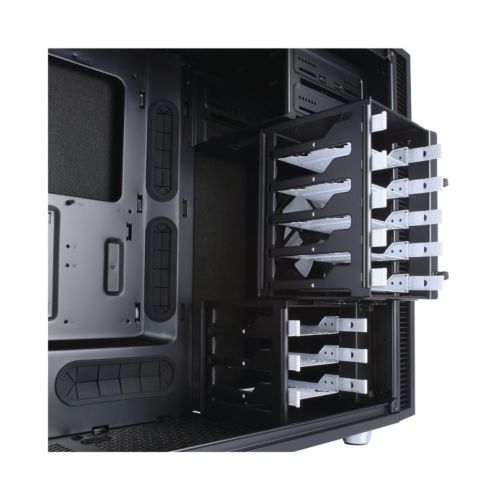

Drive Bays

8 x 3.5" HDD/2.5" SSD positions
2 x 2.5" dedicated SSD positions (SSDs up to 12mm thick)
2 x removable 5.25" bays

Expansion Slots

7 Expansion slots

Cooling System

Included
Front: 1 x Dynamic GP-14 140mm fan
Rear: 1 x Dynamic GP-14 120mm fan

Fan Mounts
Front: 2 x 120 / 2 x 140 mm
Top: 3 x 120 / 3 x 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 2 x 120 / 2 x 140 mm
Side: 1 x 120 / 140 mm

Water Cooling options:
Front: Up to 360 mm radiator (without drive bays)
Top: Up to 420 mm radiator*
Rear: 120/140 mm radiator
Bottom: 120/140 mm radiator (Bottom radiators limit PSU length to 165mm)

*a thickness limitation of 55 mm for both radiator + fan applies on 420, 280 and 140 mm radiators; 420 and 360 mm radiators require removal of the ODD bay

Colour

Black

Material

Left side panel: Industrial sound-dampened steel
Right side panel: Industrial sound-dampened steel

Compatibility

GFX Card:
310 mm with the top HDD cage installed or 440 mm with the top cage removed

Max CPU Cooler:
180 mm

PSU:
190/170 mm with a bottom 120/140 mm fan installed or 300 mm when not using any bottom fan location

Weight/Dimensions

10.7 kg
(WxHxD) 232 x 451 x 521 mm
With feet/screws/protrusions: 232 x 462 x 531 mm

Additional Features

See Overview / Video

Accessories

User manual
Accessory box

Package Weight

12.2000 kg

Warranty

2 Years

Full Box Quantity

Manufacturer Link
