Components > Cases

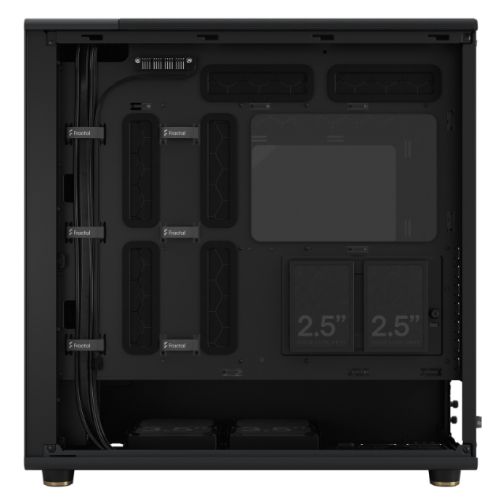

Fractal Design North XL Charcoal Black (TG Dark) Case w/ Dark Tint Glass Window, E-ATX, 3 PWM Fans, USB-C, Walnut Front
2 x USB 3.0
Audio & Mic
Combined 3.5/2.5" drive mounts: 2 (included)
Front: 3 x Aspect 140mm PWM fans
Fan Mounts:
Front: 3 x 120 / 3 x 140 mm
Top: 3 x 120 / 2 x 140 / 2 x 180 mm
Rear: 1 x 120 / 140 mm
Side Bracket: None
Radiator options:
Front: Up to 420 mm
Top: Up to 360 mm
Rear: Up to 140 mm*
Bottom: N/A
*If you’re using a rear radiator the fan bracket can only be slotted into the bottom position
Right side panel: Steel
413 mm with front fan mounted
380 mm with 420/360 mm front mounted radiator
CPU cooler max height:
185 mm
PSU max length:
1 HDD Tray: 290 mm
2 HDD Trays: 175 mm
(LxWxH) 503 x 240 x 509 mm
w/o feet/protrusions/screws: 490 x 240 x 490 mm
User Manual
