Components > Cases

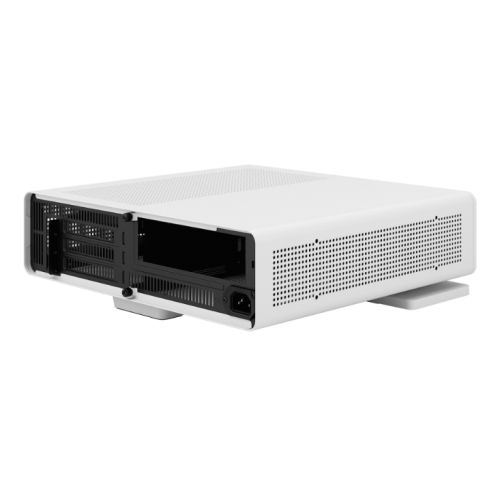

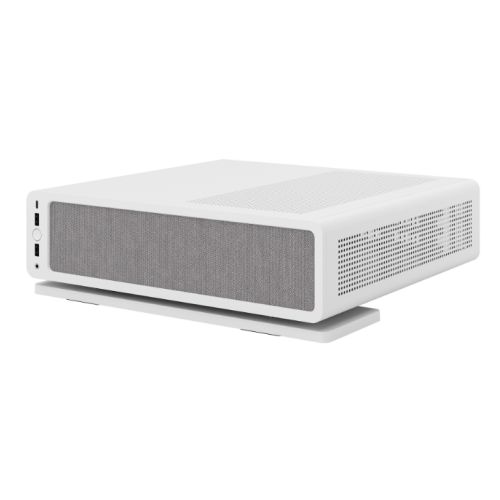

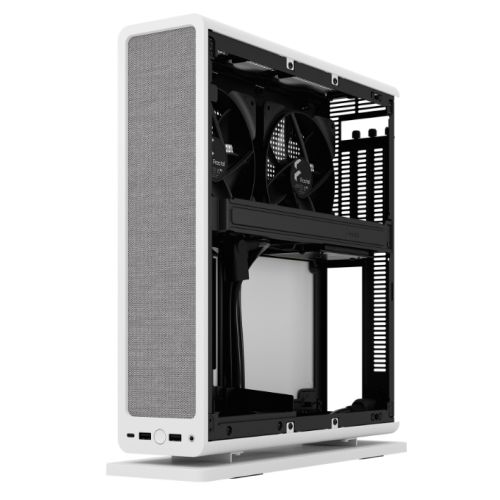

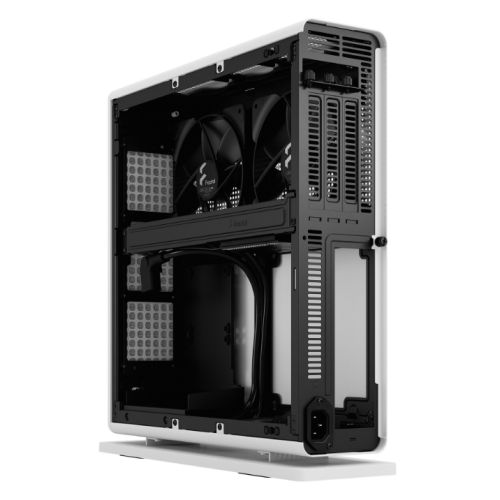

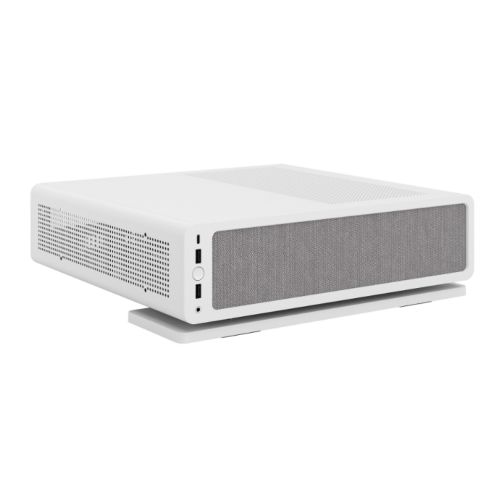

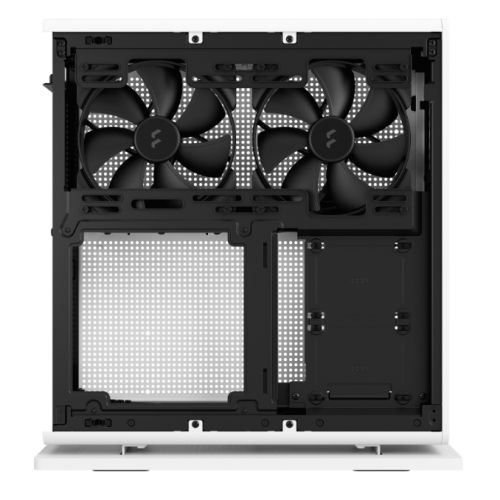

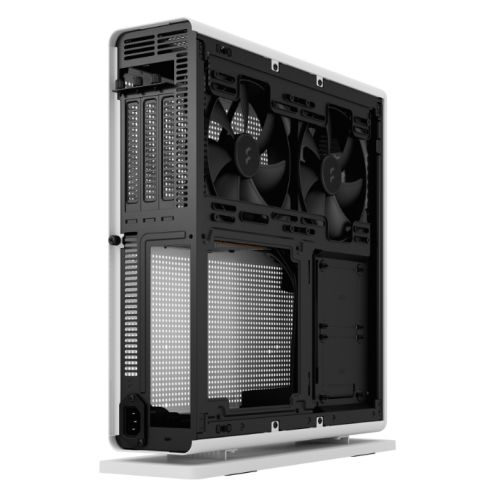

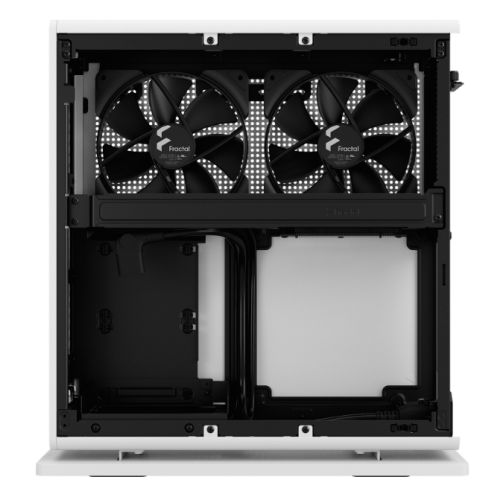

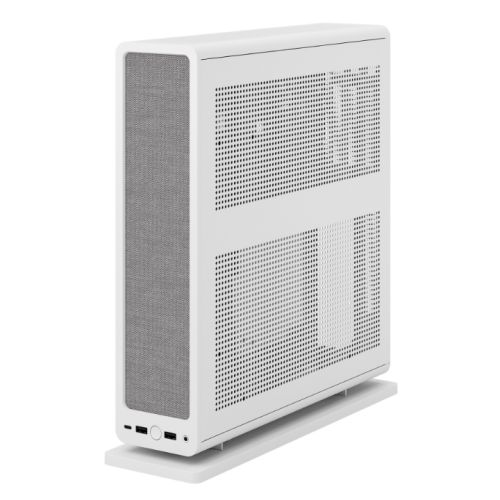

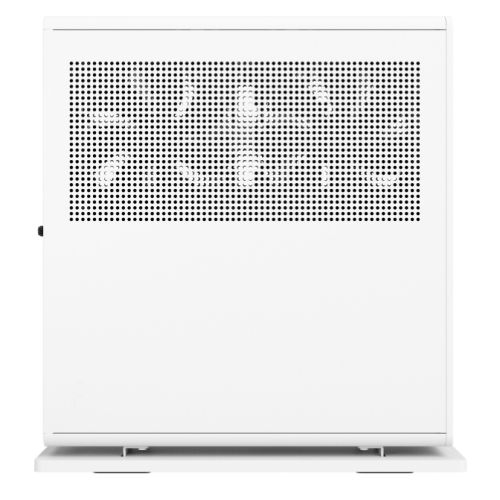

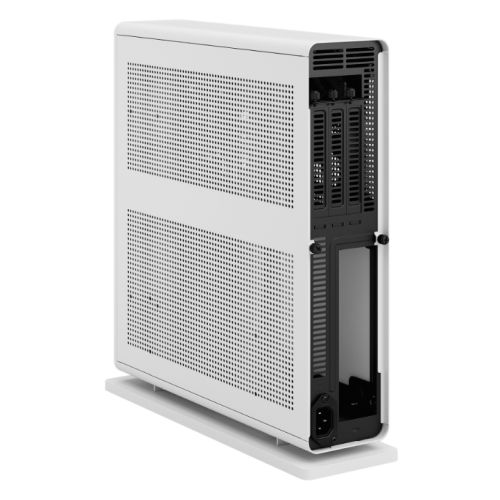

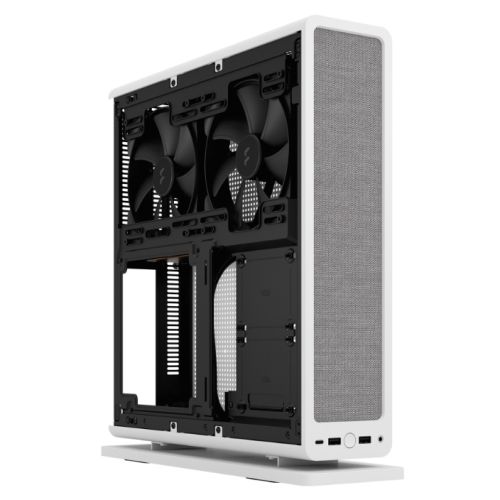

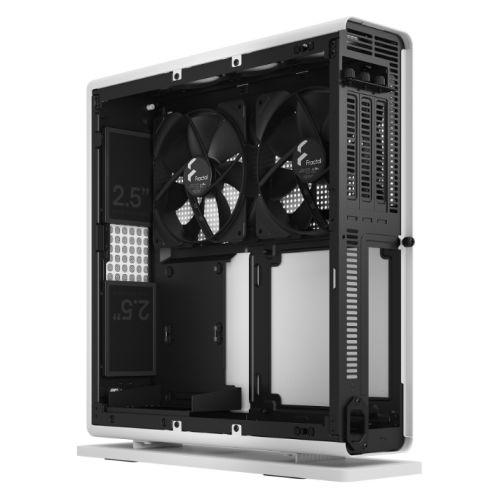

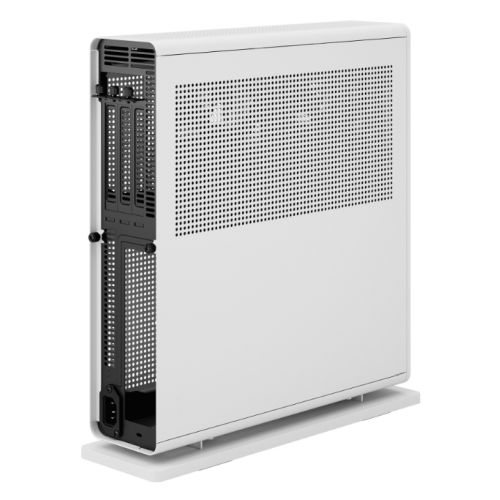

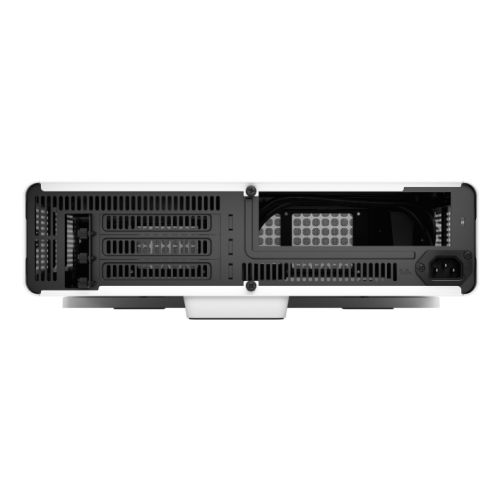

Fractal Design Ridge (White) SFF Console-Type Case, Mini ITX, Requires SFX/SFX-L PSU, 2 Fans, PCIe 4.0 Riser Card, USB-C, Horizontal/Vertical Orientation
+ click images to enlarge
Stock Code
CAI-FRRID-WV2
Manufacturer
Manufacturer Code
FD-C-RID1N-12
EAN Number
7340172706106
1 Available
You must be logged in to view pricing and place orders
Form Factor
Mini ITX
Power Supply Wattage
No PSU
Motherboard Support
Mini ITX

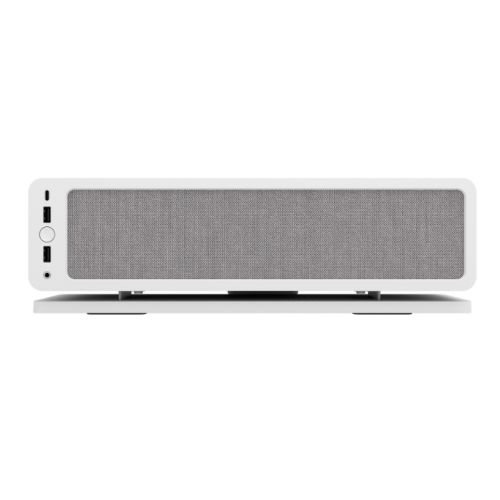

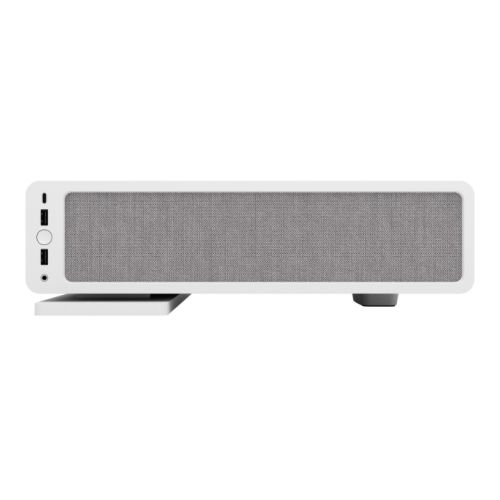

Connectors / Controls
1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
1 x Combo jack – Audio/Microphone
Power button
2 x USB 3.0
1 x Combo jack – Audio/Microphone
Power button
Drive Bays
Dedicated 2.5" drive mounts: 4x included, 4x positions total
Expansion Slots
3-slot

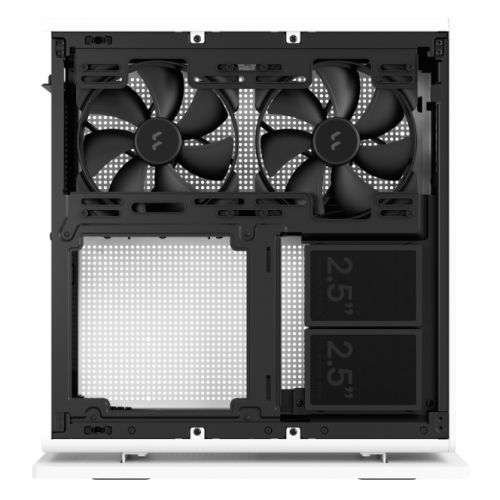

Cooling System
Included
Side: 2 x 140 mm PWM Aspect fans
Fan Mounts
Side: 2 x 120/140 mm
Top: 3 x 80 mm
Side: 2 x 140 mm PWM Aspect fans
Fan Mounts
Side: 2 x 120/140 mm
Top: 3 x 80 mm
Radiator options:
Side:
120 mm when <175mm long GPUs are installed
280 mm with no GPU installed
Colour
White
Material
6 mm anodized and CNCd aluminium front
Left side panel: steel
Right side panel: steel
Left side panel: steel
Right side panel: steel
Compatibility
GPU max length:
325 mm with SSD installed
335 mm without SSD installed
GPU max height:
125 mm with top fan(s) installed
141 mm without top fan(s)
GPU max thickness:
57 mm with 2x 140 mm fans installed
82 mm without side fans
CPU cooler max height:
70 mm
PSU max length:
SFX & SFX-L supported
325 mm with SSD installed
335 mm without SSD installed
GPU max height:
125 mm with top fan(s) installed
141 mm without top fan(s)
GPU max thickness:
57 mm with 2x 140 mm fans installed
82 mm without side fans
CPU cooler max height:
70 mm
PSU max length:
SFX & SFX-L supported
Weight/Dimensions
4.3 kg
Vertical (LxWxH): 374 x 395.4 x 110 mm
Horizontal (LxWxH): 360 x 115 x 375 mm
w/o feet/protrusions/screws: 355 x 375 x 94.6 mm
Vertical (LxWxH): 374 x 395.4 x 110 mm
Horizontal (LxWxH): 360 x 115 x 375 mm
w/o feet/protrusions/screws: 355 x 375 x 94.6 mm
Additional Features
See Overview
Accessories
Accessory box
Manual
Manual
Package Weight
5.9000 kg
Warranty
2 Years
Full Box Quantity
1
Manufacturer Link
