Components > Graphics Cards

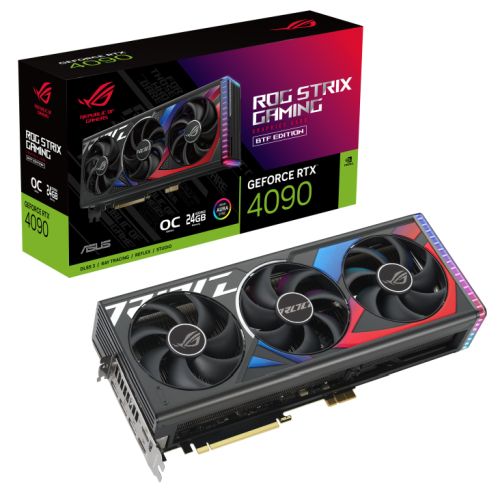

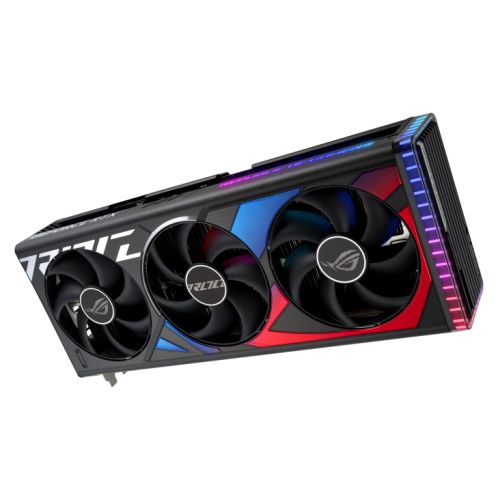

Asus ROG STRIX RTX4090 BTF OC, 24GB DDR6X, 2 HDMI, 3 DP, 2640MHz Clock, Overclocked, RGB Lighting Requires an Advanced BTF Compatible Motherboard

+ click images to enlarge

Requires a motherboard that is Advanced BTF compatible

Stock Code

NVRTX4090X24ASSTOCBTF

Manufacturer

ASUS

Manufacturer Code

90YV0JT0-M0NA00

EAN Number

4711387526897

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Chipset Manufacturer

Nvidia

Interface

PCI Express 4.0

Graphics Chipset

Nvidia RTX 4090

Memory Size

24GB

Memory Type

DDR6X

Memory Interface

384-bit

Core Clock

OC mode: 2640 MHz
Default mode: 2610 MHz (Boost Clock)

Memory Clock

21 Gbps

CUDA Cores / Stream Processors

16384 CUDA Cores

Outputs

2 x HDMI 2.1a
3 x DisplayPort 1.4a

HDCP Support

Yes

Resolution

Digital Max Resolution 7680 x 4320

Multi-GPU Support

None

Max Display Support

Cooling

Triple Fan Design
Axial-tech Fans
Vented Exoskeleton
Vapor Chamber
Two Side Fans Spin Counterclockwise
0dB Technology

PSU Requirements

1000W or greater recommended

Connectors Required

PCIe high-power connector

Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver

Additional Features

Click here to learn more about Asus BTF

Dimensions

357.6 x 149.3 x 70.1 mm

Slot Size

3.5 Slot

Accessories

1 x Collection Card
1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x Thank you Card

Package Type

Retail

Package Weight

3.9500 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer

ROG Strix GeForce RTX™ 4090 BTF OC Edition 24GB GDDR6X buffed-up design with chart-topping thermal performance and innovative Graphics Card High-Power (GC-HPWR) Gold Finger.

AI Performance: 1368 AI TOPS
Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
OC edition: boost clock 2640 MHz (OC mode)/ 2610 MHz (default mode)
Graphics card high-power gold finger for power transmission, and prevent GPU sag
Eliminate the need for traditional 16-pin external power connections to the graphics card
Axial-tech fans scaled up for 23% more airflow
New patented vapor chamber with milled heatspreader for lower GPU temps
3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

With the incredible sum of its parts

The ROG Strix GeForce RTX™ 4090 BTF Edition brings a whole new meaning to going with the flow.

Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.

The unleashed reign of the NVIDIA Ada Lovelace architecture is here.

Advanced BTF Design

With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.

Axial-tech Upgrades

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55°C, referencing a speed curve that balances performance and acoustics for work or play.

3.5-slot Design

The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4090 BTF GPU so that it can be efficiently whisked away by the three Axial-tech fans.

Patented Vapor Chamber

A vapor chamber featuring milled pathways lets the heatpipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heatpipe combos, this potent pairing reduces GPU temperature by up to 5 Celsius when subjected to a 500W thermal load.

Premium Power Delivery

Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.

Compact PCB

Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.

Metal Exoskeleton

A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.

Graphics Card High-Power (GC-HPWR) Gold Finger

The graphics card high-power (GC-HPWR) gold finger is capable to deliver up to 600W through the “graphics card high-power slot” on BTF motherboards, eliminating visible external power connectors for a cleaner build. This design also adds structural support, preventing graphics card sag and ensuring a sleek setup.

FanConnect II

Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.

Reinforcements

A GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.

Auto-Extreme Technology

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Aura Sync

Aura-compatible ARGB lighting elements on the shroud and rightmost perimeter of the card provide endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.

Graphics Card Holder

The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

GPU Tweak III

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

QuantumCloud

QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
