PCs / Servers > Barebone PCs

Asrock DeskMeet X300 Barebone PC, Mini ITX, AMD AM4 (X300), DDR4 DIMM, 2x SATA, 1x M.2, VGA, HDMI, DP, USB-C, 500W PSU - No CPU, RAM, Storage or O/S

+ click images to enlarge

Stock Code

PCAS-DESKMEETX300

Manufacturer

ASROCK

Manufacturer Code

90BXG4501-A10GA0W

EAN Number

4710483939136

Printable Version

12 Available

You must be logged in to view pricing and place orders

Tower / Small Form Factor

Small Form Factor

Chassis

Asrock DeskMeet

Processor

None

Processor Details

Supports AMD AM4 Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, up to 65W

Chipset

AMD X300

Graphics

Supports a discrete Dual slot Graphics card up to 20cm

Memory

None

Memory Details

4 x DDR4 DIMM (Dual Channel)
Max. 128GB
AMD Ryzen 5000/4000 series – 3200MHz
AMD Ryzen 3000/2000 series – 2933MHz
Supports ECC & non-ECC, un-buffered memory

Hard Drive

None

SSD Drive

None

Optical Drive

None

Supported Drives

2 x SATA3 for 3.5” HDD or 2.5” SSD/HDD (RAID 0/1)
1 x Ultra M.2 (2280) - PCIe

Operating System

No O/S

Front I/O

1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
1 x Headphone/Headset Jack

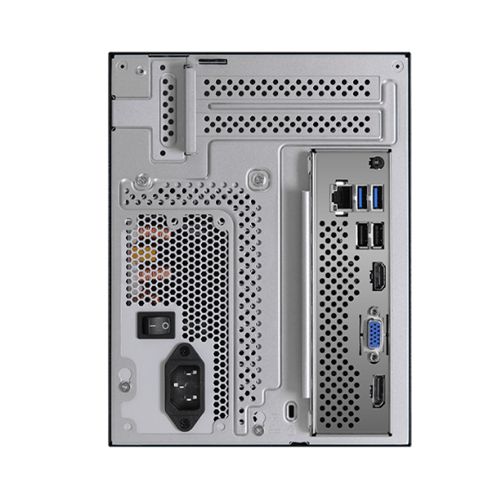

Back I/O

1 x D-Sub
1 x HDMI
1 x DisplayPort
2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
1 x RJ-45 LAN Port
1 x Audio Jack (Line out)

LAN

Gigabit LAN (RealtekRTL8111H)

Wireless

Bluetooth

Sound

Realtek ALC897 Audio Codec

Expansion

1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Headers (Support 2 USB 2.0 ports)

Power Unit

500W 80+ Bronze

Keyboard and Mouse

Dimensions

168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)

Additional Features

See Overview

Accessories

Quick Installation Guide
2 x SATA Data Cables
1 x Screws Package

Package Weight

4.2000 kg

Package Type
