PCs / Servers > Barebone PCs

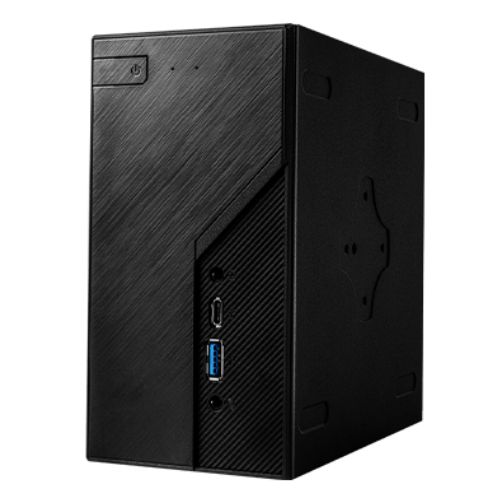

Asrock DeskMini B760 Mini Barebone PC, LGA1700 (B760), DDR4 SO-DIMM, 2.5" SATA, M.2, VGA, HDMI, DP, USB-C, 2.5G LAN - No CPU, RAM, Storage or O/S
+ click images to enlarge
Stock Code
PCAS-DESKMINIB760
Manufacturer
Manufacturer Code
90BXG4E01-A10GA0W
EAN Number
4710483942921
9 Available
You must be logged in to view pricing and place orders
Tower / Small Form Factor
Small Form Factor
Chassis
Asrock DeskMini
Processor
None
Processor Details
Supports 13th Gen & 12th Gen Intel Processors (LGA1700)
Max. TDP 65W
Supports Intel CPU Cooler (Max. Height 47mm)
Max. TDP 65W
Supports Intel CPU Cooler (Max. Height 47mm)
Chipset
Intel B760
Graphics
VGA
HDMI (4K@60Hz)
DisplayPort 1.4
DisplayPort 1.4 (over USB Type-C Alt Mode)
HDMI (4K@60Hz)
DisplayPort 1.4
DisplayPort 1.4 (over USB Type-C Alt Mode)
Memory
None
Memory Details
2 x SO-DIMM DDR4-3200MHz
Max. 64GB (non-ECC)
Max. 64GB (non-ECC)
Hard Drive
None
SSD Drive
None
Optical Drive
None
Supported Drives
2 x SATA3 6Gb 2.5" 7mm/9.5mm Hard Drive (RAID 0/1)
1 x Blazing M.2 (2280) PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 (2280) PCIe Gen4x4 (64 Gb/s) mode
1 x Blazing M.2 (2280) PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 (2280) PCIe Gen4x4 (64 Gb/s) mode
Operating System
No O/S

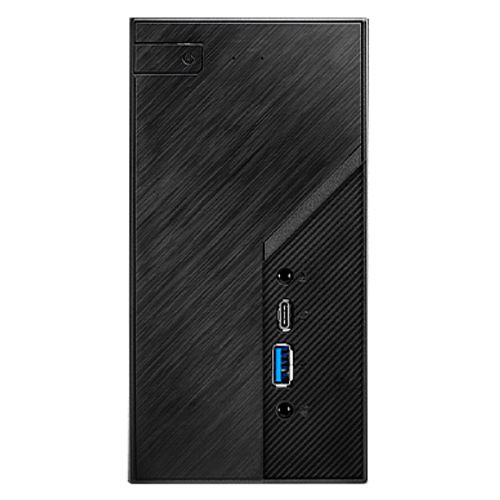

Front I/O
1 x MIC-In
1 x USB 3.2 Gen2x2 Type-C (20 Gb/s)
1 x USB 3.2 Gen2 Type-A (10 Gb/s)
1 x Head Phone with MIC Jack
1 x USB 3.2 Gen2x2 Type-C (20 Gb/s)
1 x USB 3.2 Gen2 Type-A (10 Gb/s)
1 x Head Phone with MIC Jack

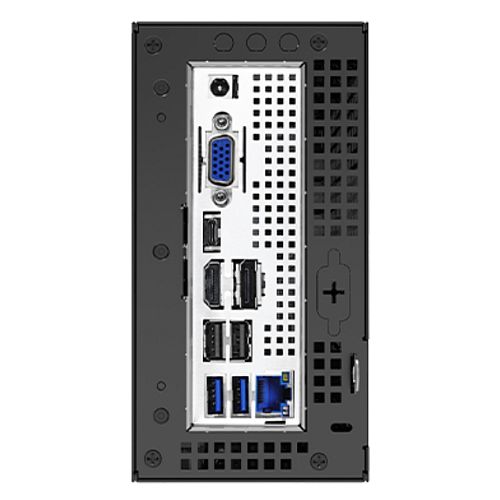

Back I/O
1 x DC-In Jack (Compatible with the 19V power adapter)
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-C (Supports USB Type-C Alt Mode)
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-C (Supports USB Type-C Alt Mode)
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
LAN
2.5GB LAN (Dragon RTL8125BG)
Wireless
None
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)
Sound
Realtek ALC269 Audio Codec
Expansion
1 x USB 2.0 Header
1 x Front Panel Header
2 x 4-Pin fan connectors (CPU, SYS)
1 x Internal Speaker Header (4-Pin)
1 x Audio Header (4-Pin)
1 x Front Panel Header
2 x 4-Pin fan connectors (CPU, SYS)
1 x Internal Speaker Header (4-Pin)
1 x Audio Header (4-Pin)
Power Unit
120W/19V adapter
Keyboard and Mouse
No
Dimensions
155 x 155 x 80 mm (1.92L)
Additional Features
See Overview
Accessories
2 x SATA Data with Power Cable
1 x 120W/19V adapter
1 x Screws Pack
1 x 120W/19V adapter
1 x Screws Pack
Package Weight
1.7900 kg
Package Type
Retail
Warranty
2 Year Replacement Warranty
Full Box Quantity
10
