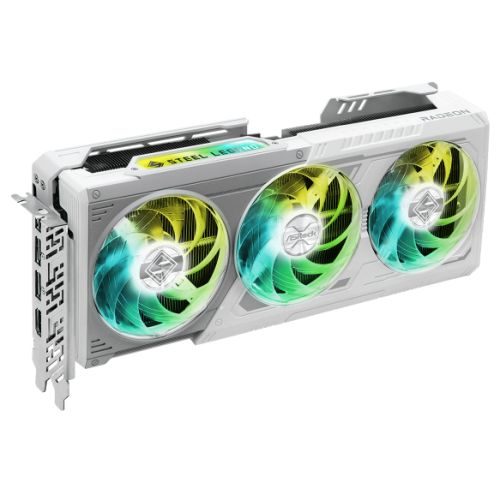

Asrock RX9070 Steel Legend 16GB OC, PCIe5, 16GB DDR6, HDMI, 3 DP, 2700MHz Clock, RGB Lighting, White, Overclocked

+ click images to enlarge

Stock Code

RADRX90716ASRSLOC

Manufacturer

ASROCK

Manufacturer Code

90-GA5EZZ-00UANF

EAN Number

4711581490468

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Chipset Manufacturer

AMD

Interface

PCI Express 5.0

Graphics Chipset

AMD RX 9070

Memory Size

16GB

Memory Type

DDR6

Memory Interface

256-bit

Core Clock

Boost Clock: Up to 2700 MHz
Game Clock: 2210 MHz

Memory Clock

20 Gbps

CUDA Cores / Stream Processors

3584 Stream Processors

Outputs

1 x HDMI 2.1b
3 x DisplayPort 2.1a

HDCP Support

Yes

Resolution

Digital Max Resolution: 7680 x 4320

DirectX Support

DirectX 12 Ultimate

Max Display Support

Cooling

Triple Fan
Striped Ring Fans Design
Air Deflecting Fin
0dB Tech
Ultra-fit Heatpipe
Nickel-plated Copper Base
High-density Metal Welding

PSU Requirements

700W or greater recommended

Connectors Required

2 x 8-pin PCIe

Software

AMD Software: Adrenalin Edition

Additional Features

See Overview

Dimensions

298 x 131 x 58 mm

Slot Size

2.9 Slot

Accessories

1 x Quick Installation Guide

Package Type

Retail

Package Weight

1.7000 kg

Warranty

2 Year Replacement Warranty

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer

AMD Radeon™ RX 9070 Steel Legend 16GB OC

Boost Clock: Up to 2700 MHz / 20 Gbps
Game Clock: 2210 MHz / 20 Gbps
AMD Radeon™ RX 9070 GPU
16GB GDDR6 on 256-Bit Memory Bus
AMD RDNA™ 4 Architecture
56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express 5.0 Support
2x 8-pin Power Connectors
3x DisplayPort™ 2.1a, 1x HDMI™ 2.1b
Polychrome SYNC
Triple Fan Design
Stylish Metal Backplate
Striped Ring Fan
Reinforced Metal Frame
Air Deflecting Fin
Ultra-fit Heatpipe
Super Alloy Graphics Card

Polychrome SYNC

Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED Switch & ARGB Header

LED Switch - You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header - With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.

Triple Fan Design

Triple fan design helps to optimize system cooling to reduce the operating temperature.

Stylish Metal Backplate

Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Reinforced Metal Frame

Be solid. No sag.

Enhances the structure to prevent the PCB from being bent.

Striped Ring Fan

Designed For Enhanced Airflow

ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Air Deflecting Fin

Guide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Super Alloy Graphics Card

SP-Cap - With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current, thus providing improved thermal result and superior performance.
Premium Power Choke - Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB - Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB - A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

Nano Thermal Paste

Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

All You Need For Ultra Fast Gaming

Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX6 to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 41, delivering an immersive gaming experience now and for years to come.

Superpowered Visuals Enhanced With AI

Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 41 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.

Instant Performance For Every Move

Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX6 in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution1, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.

Future Ready Tech With AI

AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology3 to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.
