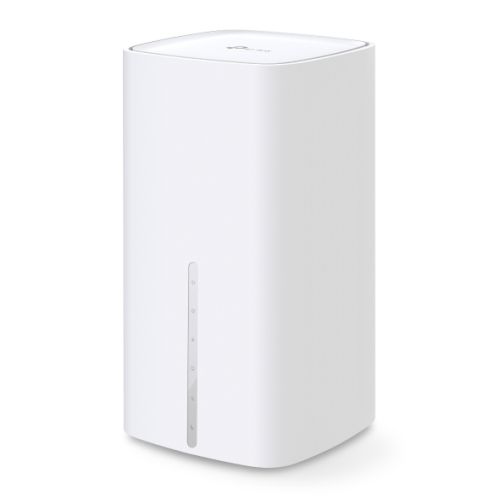

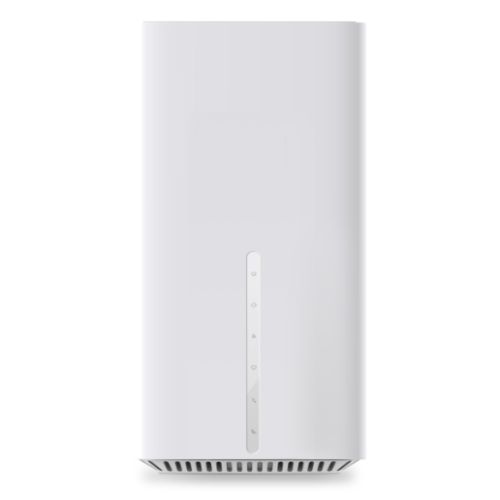

TP-LINK Aginet (EX530v) AX3000 Dual Band Wi-Fi 6 VoIP Router, EasyMesh, Remote Management, GB WAN/LAN, 1x Phone Ports, USB

+ click images to enlarge

Stock Code

ROU-AX3000TPDUALV

Manufacturer

TP-LINK

Manufacturer Code

EX530V

EAN Number

4897098686294

Printable Version

6 Available

You must be logged in to view pricing and place orders

Type

VoIP Router

Connectivity

Wireless

Wi-Fi Rating

AX3000

Max Single Band Wi-Fi Rate

2402 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Bands

Dual Band

Signal Rate

5 GHz: 2402 Mbps
2.4 GHz: 574 Mbps

Interface(s)

1 x 10/100/1000 Mbps RJ45 WAN
3 x 10/100/1000 Mbps RJ45 LAN
1 x Phone Port
1 x USB 3.0

Standards

IEEE 802.11 ax/ac/n/a 5 GHz
IEEE 802.11 ax/b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Button(s)

Power On/Off Button, Reset Button, WPS/Wi-Fi Button

Power Supply

External Power Supply: 12V/2.0A

Antenna(s)

Internal Antennas

Dimensions

99 x 99 x 190 mm

Wireless Functions

Enable/Disable Wireless Radio, WMM, Air Time Fairness, Wireless Statistics, MAC Filtering

Security

Wireless Security: WPA/WPA2/WPA3 Encryptions
IPv4/IPv6 SPI Firewall
DDoS
Service Filtering
Access Control
IP&MAC Binding

DHCP

DHCP Client, DHCP Server, DHCP Relay, Address Reservation, Condition Pool

Port/NAT Forwarding

Virtual Server, Port Triggering, DMZ, ALG, UPnP

VPN Support

PPTP, IPSec, OpenVPN

Management

Local management:
WebGUI, Aginet app (for end users)

Remote management:
Aginet ACS, TR-069, TR-181, TR-369, TR-111,TR-143 for service providers
Aginet App for end user (need to log in with TP-Link ID and bind your device to it)

Cloud management:
TP-Link Aginet Unified Cloud (TAUC)

Dynamic DNS

NO-IP, DynDNS

USB Application

Samba, FTP, Media Server

Additional Features

VoIP, Parental Controls, Firewall, Address Reservation, QoS (Quality of Service), CWMP, Network Diagnosis, Traffic Statistics,1024-QAM, MU-MIMO, OFDMA, Cloud upgrade

Environment

Operating Temperature: 0°C–40°C (32°F –104°F)
Storage Temperature: -40°C–60°C (-40°F –140°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

Package Contents

1 x Wi-Fi 6 VoIP Router EX530v
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x RJ11 Cable
1 x Quick Installation Guide

Package Type

Retail

Package Weight

1.0600 kg

Warranty

3 Years
