Networking > Routers / Mesh Systems

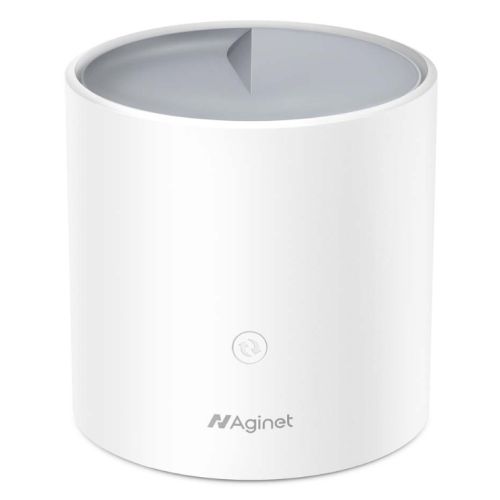

TP-LINK Aginet (HX710 PRO) AX5400 Dual Band Whole Home Mesh Wi-Fi 6 System, Remote Management, 2.5G WAN/LAN, AP Mode

+ click images to enlarge

Stock Code

ROU-AX5400TPHX710PRO

Manufacturer

TP-LINK

Manufacturer Code

HX710 PRO(1-PACK)

EAN Number

4895252500165

Printable Version

11 Available

You must be logged in to view pricing and place orders

Type

Mesh Wi-Fi System/Router

Connectivity

Wireless

Wi-Fi Rating

AX5400

Max Single Band Wi-Fi Rate

4804 Mbps

Max Wired Transfer Rate

2.5 Gbps

Bands

Dual Band

Signal Rate

5 GHz: 4804 Mbps
2.4 GHz: 574 Mbps

Interface(s)

1 x 2.5G WAN/LAN
2 x Gigabit LAN
1 Port supports WAN/LAN auto-sensing

Standards

Standards:
Wi-Fi 6
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz

Protocols:
IPv4
IPv6

Frequency

2.4 GHz and 5 GHz

Button(s)

Reset Button
WPS Button

Power Supply

External Power Supply: 12V DC/1.5.0A

Antenna(s)

High-Performance Antennas
Beamforming Technology

Dimensions

110 x 110 x 114 mm

Wireless Functions

Router Mode
Access Point Mode
OFDMA
Multi-link operation (MLO)
MU-MIMO
EasyMesh Compatible

Security

Wireless Security:
WPA-PSK/WPA2-PSK/WPA3 Personal encryptions

Firewall Security:
SPI Firewall

Multi-SSID:
2x 5 GHz Multi-SSID
2x 2.4 GHz Multi-SSID

Parental Controls:
Block inappropriate content and restrict time spent online

Port/NAT Forwarding

Port Forwarding

VPN Support

PPTP, OpenVPN, IPSec

Management

Local management:
WebGUI, Aginet app (for end users)

Remote management:
TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providers

Aginet App:
Aginet App for end users (need to log in with TP-Link ID and bind your device to it)

Cloud management:
TP-Link Aginet Unified Cloud (TAUC)

USB Application

Additional Features

QoS (Quality of Service), Address Reservation, WiFi Schedule, Guest Network, Network Diagnosis, Traffic Statistic

Environment

Operating Temperature: 0°C–40°C (32°F –104°F)
Storage Temperature: -40°C–60°C (-40°F –140°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

Package Type

Retail

Package Weight

0.9600 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
