Networking > Routers / Mesh Systems

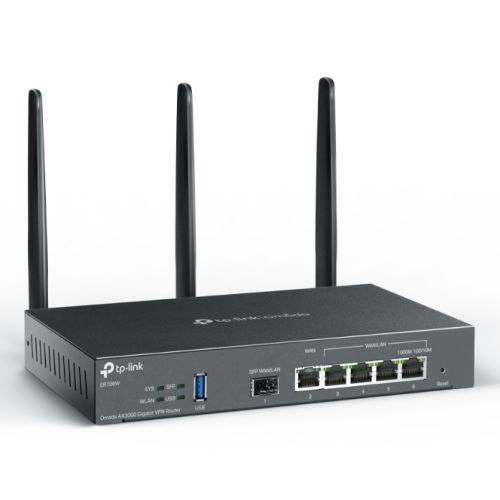

TP-LINK (ER706W) Omada AX3000 Gigabit VPN Wi-Fi Router, Dual Band, 6x GB Ports, USB 3.0, Mesh Technology, Abundant Security Features

+ click images to enlarge

Stock Code

ROU-VPNER706W

Manufacturer

TP-LINK

Manufacturer Code

ER706W

EAN Number

4895252500707

Printable Version

5 Available

You must be logged in to view pricing and place orders

Type

VPN Router

Connectivity

Wireless

Wi-Fi Rating

AX3000

Max Single Band Wi-Fi Rate

2402 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Bands

Dual Band

Signal Rate

5 GHz: 2402 Mbps
2.4 GHz: 574 Mbps

Interface(s)

1 x Gigabit SFP WAN/LAN Port
1 x Gigabit WAN Port
4 x Gigabit LAN/WAN Ports
1 x USB3.0 (supports USB LTE dongle and USB Storage)

Frequency

2.4 GHz & 5 GHz

Button(s)

Reset Button

Power Supply

12VDC / 2A Power Adapter

Antenna(s)

2.4 GHz: 2x 3 dBi dual-band detachable antennas
5 GHz: 3x 4.5 dBi dual-band detachable antennas

Dimensions

(WxDxH) 226 x 131 x 35 mm (Antenna dimensions are not
included)

Wireless Functions

Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Guest Network

Security

WiFi Encryption:
WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

Filtering:
Web Group Filtering
URL Filtering
Web Security

ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding

Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN

Access Control:
Source/Destination IP Based Access Control

DHCP

DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP

Port/NAT Forwarding

66 Byte Packet forwarding rate:
1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding rate:
81,274 pps / 91,275 pps

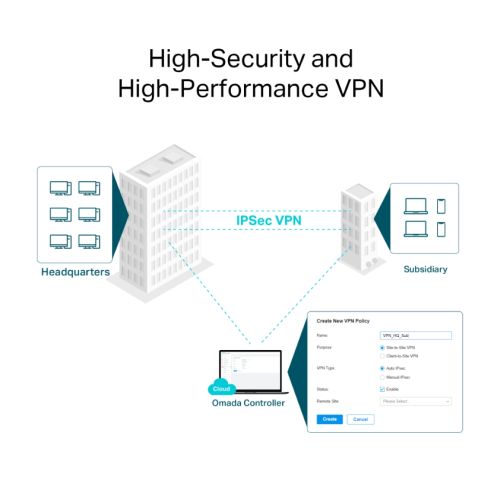

VPN Support

SSL VPN:
50 Tunnels

IPsec VPN:
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

PPTP VPN:
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption

L2TP VPN:
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec

OpenVPN:
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode

Management

Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Port Mirroring
CLI (in Standalone Mode)
Syslog Support

Features:
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Dynamic DNS

Dyndns, No-IP, Peanuthull, Comexe, DDNS
Customization

USB Application

Supports USB LTE dongle and USB Storage

Additional Features

ACL:
IP/Port/Protocol/Domain Name Filtering

Advanced Routing:
Static & Policy Routing
Routing
RIP
OSPF

Bandwidth Control:
IP-Based Bandwidth Control

Load Balance:
Intelligent Load Balance
Application Optimized Routing
Link Backup(Timing, Failover)
Online Detection

NAT:
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP

Environment

Operating Temperature: 0C°~40°C (32°F ~104°F)
Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Package Contents

ER706W
Power Adapter
Quick Installation Guide

Package Type

Retail

Package Weight

1.7000 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
