Networking > Routers / Mesh Systems

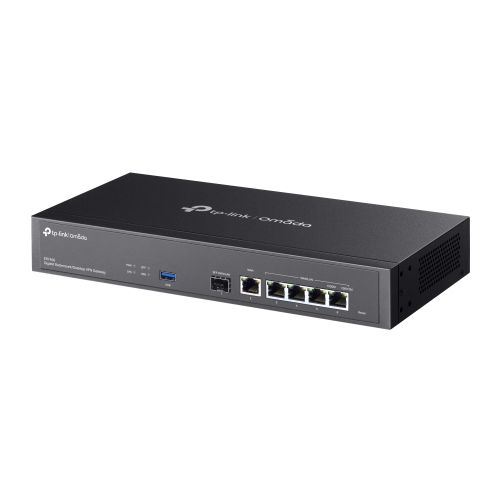

TP-LINK (ER7406) Omada Gigabit Rackmount/Desktop VPN Gateway, GB SFP WAN/LAN, 5x GB Ports, USB, Centralized Management

+ click images to enlarge

Stock Code

ROU-VPNER7406

Manufacturer

TP-LINK

Manufacturer Code

ER7406

EAN Number

8885020622317

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Type

VPN Router

Connectivity

Wired

Max Single Band Wi-Fi Rate

None

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x Gigabit SFP WAN/LAN
1 x Gigabit WAN
4 x Gigabit LAN/WAN
1 x USB 3.0 Port (supports USB LTE dongle and USB storage)

IEEE Standards & Protocols

IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q

TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Button(s)

Reset Button

Power Supply

100-240VAC, 50/60Hz
Max Power Consumption:
7.5W (with USB 3.0 connected)
4.5W (without USB 3.0 connected)

Antenna(s)

Dimensions

(WxDxH) 294 x 140 x 44 mm

Security

Access Control:
Source/Destination IP Based Access Control

Filtering:
WEB Group Filtering
URL Filtering
Web Security

ARP Inspection:
Sending GARP Packets
ARP Scanning
IP-MAC Binding

Attack Defense:
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN

DHCP

DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP

Port/NAT Forwarding

One-to-One NAT
Multi-Net NAT
Port Forwarding
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP

VPN Support

GRE:
Yes (Only in Standalone Mode)

SSL VPN:
50 Tunnels

IPsec VPN:
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

PPTP VPN:
PPTP VPN Server
PPTP VPN Client (10)
50 Tunnels
PPTP with MPPE Encryption

L2TP VPN:
L2TP VPN Server
L2TP VPN Client (10)
50 Tunnels
L2TP over IPSec

OpenVPN:
OpenVPN Server
OpenVPN Client (5)
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
Diagnostics (Ping & Traceroute) (Standalone Mode)
NTP Synchronize (Standalone Mode)
Port Mirroring
CLI (Standalone Mode)
Syslog Support

Management

Omada App, Centralized Management & Cloud Access:
Requires Omada Hardware, Cloud-Based, or Software Controller

Service:
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance:
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute) (Standalone Mode)
NTP Synchronize (Standalone Mode)
Port Mirroring
CLI (Standalone Mode)
Syslog Support

Zero-Touch Provisioning:
Requires Omada Cloud-Based Controller

Management Features:
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

USB Application

Supports USB storage, and LTE backup with LTE dongle

Additional Features

Advanced Routing:
Static Routing
Policy Routing
RIP (Standalone Mode)
OSPF (Standalone Mode)

Bandwidth Control:
IP-based Bandwidth Control

Load Balance:
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection

NAT:
One-to-One NAT
Multi-Net NAT
Port Forwarding
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP

Session Limit:
IP-based Session Limit

Environment

Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Package Contents

ER7406
Power Cord
Quick Installation Guide
Rackmount Kit

Package Type

Retail

Package Weight

1.7100 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
