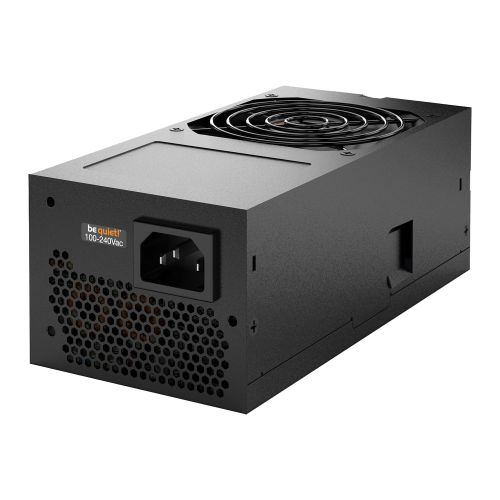

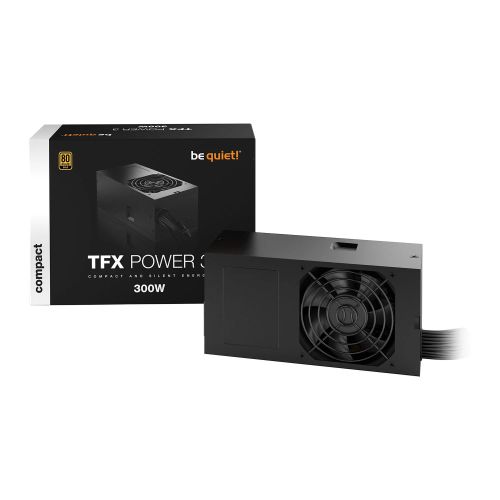

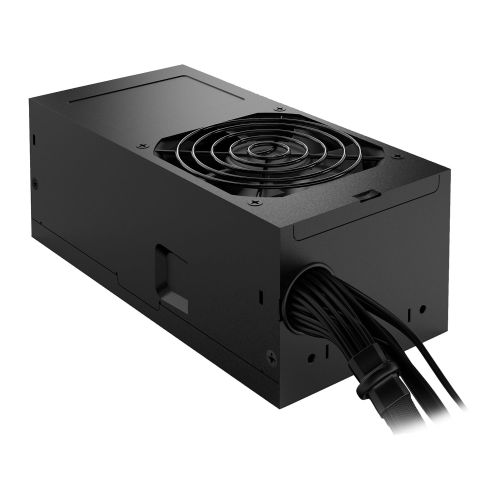

Be Quiet! 300W TFX Power 3 PSU, Small Form Factor, 80+ Gold, 2 PCIe, Continuous Power

+ click images to enlarge

Stock Code

PSU-300BQTFX3-GOLD

Manufacturer

BEQUIET

Manufacturer Code

BN323

EAN Number

4260052188293

Printable Version

12 Available

You must be logged in to view pricing and place orders

Form Factor

TFX

Series

Be Quiet! TFX Power 3

Wattage

300 W

Modular

Fully Wired

Compatibility

TFX12V v2.52 & EPS 12V v2.92

Connectors

1 x ATX-Motherboard (20+4-pin)
1 x P4 (CPU)
2 x PCI-e 6+2-pin (GPU)
3 x SATA
2 x PATA
1 x FDD (Floppy)

Rail Design

Dual12V rails

AC Input

AC 100-240 V

PFC

Active PFC

Fan Type

High-quality temperature-controlled 80mm fan

Fan Bearing

Rifle Bearing

Noise

dB(A) at 20% load: 9.7
dB(A) at 50% load: 12.4
dB(A) at 100% load: 21.7

80+ Certification

80+ Gold

Efficiency

230V, 20% load: 88.9%
230V, 50% load: 91.7%
230V, 100% load: 90.6%

MTBF

100,000 hours

Protection

Over current
Over voltage
Under voltage
Short circuit
Over Temperature
Over Power

Additional Features

See Overview

Package Contents

PSU
Screws
Cable ties
User manual

Weight/Dimensions

1.1 kg
Without cable (LxWxD): 175 x 85 x 65 mm

Package Weight

1.4300 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
