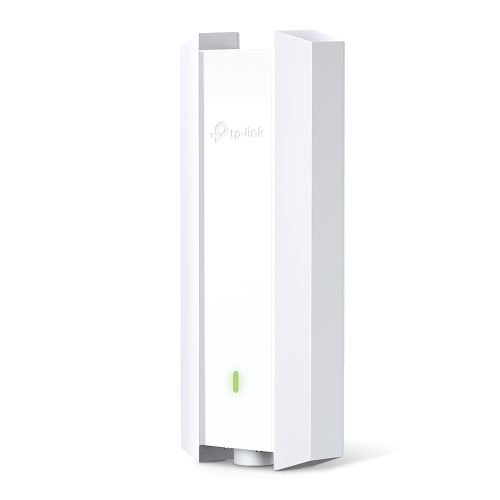

TP-LINK (EAP650-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Dual Band, OFDMA & MU-MIMO, PoE, Mesh Technology

+ click images to enlarge

Stock Code

AP-3000TPEAP650OUTDOOR

Manufacturer

TP-LINK

Manufacturer Code

EAP650-OUTDOOR

EAN Number

4897098682098

Printable Version

32 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Dual Band

Wi-Fi Rating

AX3000

Max Single Band Wi-Fi Rate

2402 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

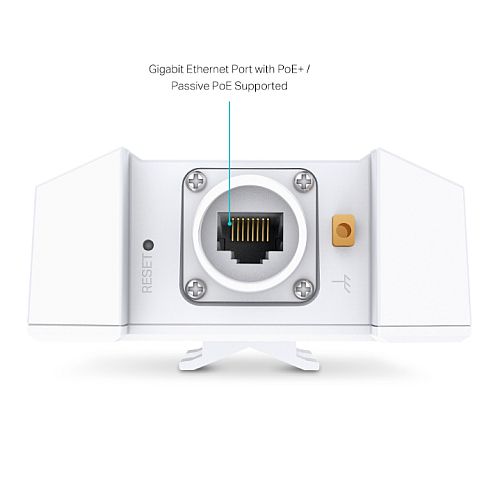

1 x Gigabit Ethernet (RJ-45)
Support 802.3at PoE and Passive PoE

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Antenna(s)

2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi

Button(s)

Reset

Power Supply

802.3at PoE
48V Passive PoE (PoE Adapter Included)

Power Consumption

12.5W (802.3at PoE or Passive PoE)

Dimensions

280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)

Weatherproof

Yes (Weatherproof)

Frequency

2.4 GHz & 5 GHz

EIRP

CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)

Wireless Functions

1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Omada Mesh
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Quality of Service

QoS (WMM)

Management

Omada App
Centralized Management (hardware & software)
Cloud Access
Email Alerts
Management MAC Access Control
SNMP: v1, v2c
System Logging Local/Remote Syslog
SSH
Web-based Management
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning - Requires Cloud-Based Controller

Additional Features

See Overview

Environment

Operating Temperature: -30–70°C (-22–158°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

Access Point EAP650-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide

Package Type

Retail

Package Weight

1.6000 kg

Warranty

2 Years
