Networking > Switches

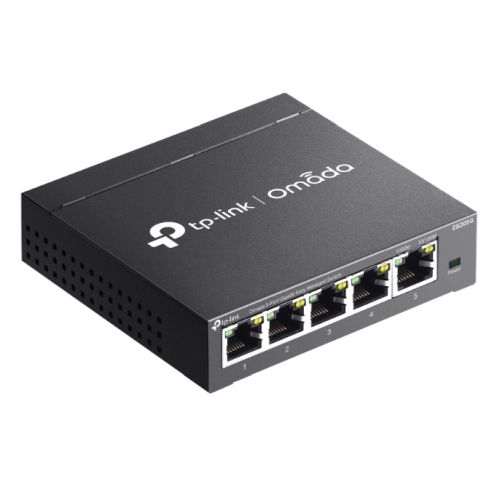

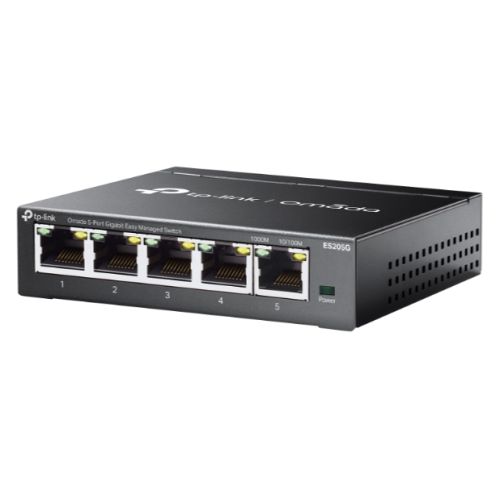

TP-LINK (ES205G) Omada 5-Port Gigabit Easy Managed Switch, 5x GB Ports, Metal Casing
+ click images to enlarge
Stock Code
SWI-5TPOMAGBEASY
Manufacturer
Manufacturer Code
ES205G
EAN Number
8885020620924
32 Available
You must be logged in to view pricing and place orders
Rackmountable
No
Managed
Yes
Number of Ports
5
Max RJ45 Transfer Rate
10/100/1000 Mbps
Interface(s)

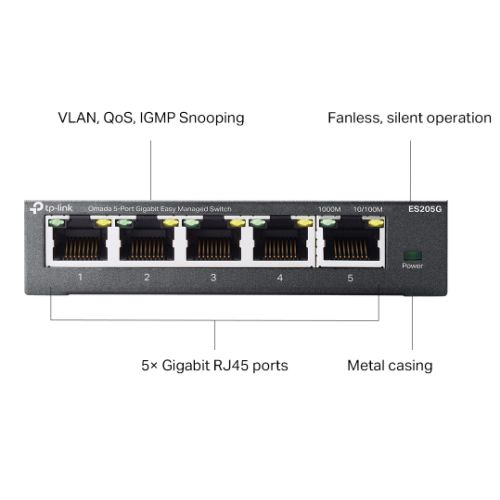

5 x 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
AUTO Negotiation/AUTO MDI/MDIX
PoE Ports (RJ45)
-
Switching Capacity
10 Gbps
Power Supply

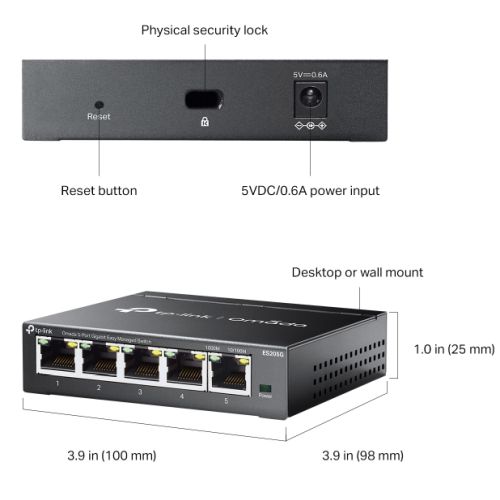

External DC Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions
100 x 98 x 25 mm
Mac Address Table
8K
Packet Forwarding Rate
7.4 Mpps
Jumbo Frame
15 KB
Additional Features
Fanless
Durable metal casing

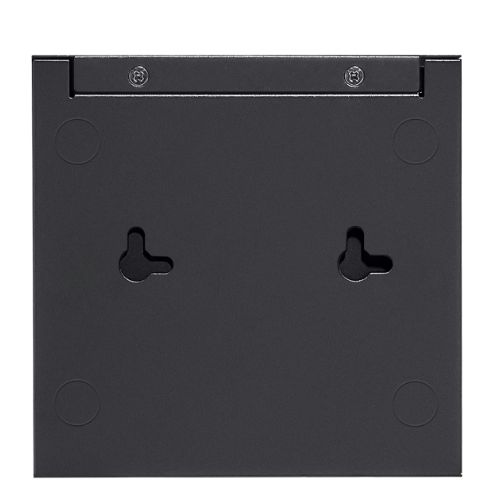

Desktop/wall mounting design

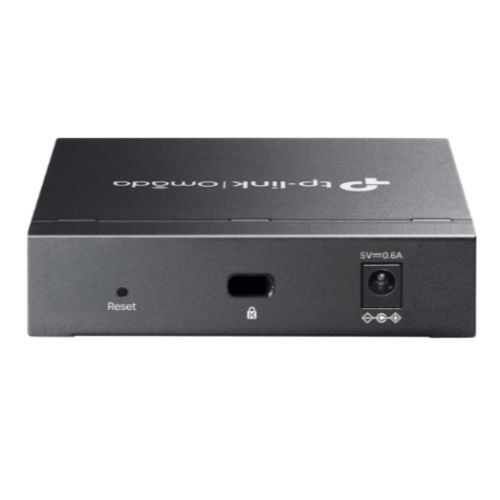

Physical security lock
Durable metal casing
Desktop/wall mounting design
Physical security lock
Quality of Service
Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control
Layer Features
L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDP
L2 Multicast:
IGMP Snooping
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDP
L2 Multicast:
IGMP Snooping
VLAN
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
Port-Based VLAN
802.1Q Tag VLAN
Management
Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
Environment
Operating Temperature: 0°C ~40°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents
ES205G
Power Adapter
Installation Guide
Rubber Feet
Power Adapter
Installation Guide
Rubber Feet
Package Type
Retail
Package Weight
0.3800 kg
Warranty
Limited Lifetime
Full Box Quantity
36
Manufacturer Link
