Networking > Switches

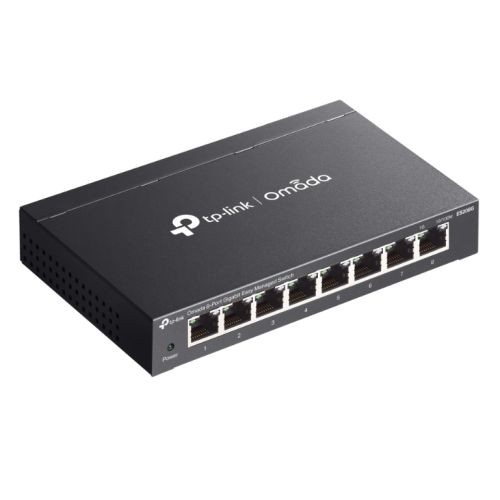

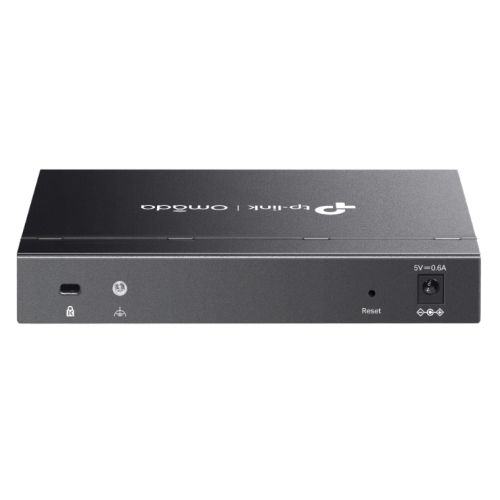

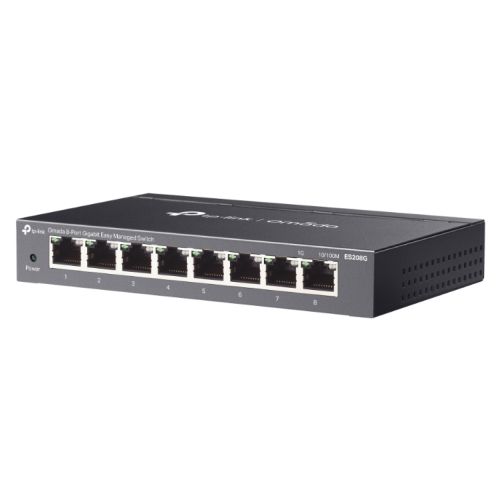

TP-LINK (ES208G) Omada 8-Port Gigabit Easy Managed Switch, 8x GB Ports, Metal Casing
+ click images to enlarge
Stock Code
SWI-8TPOMAGBEASY
Manufacturer
Manufacturer Code
ES208G
EAN Number
1210002600675
Out of Stock: call for information
You must be logged in to view pricing and place orders
Rackmountable
No
Managed
Yes
Number of Ports
8
Max RJ45 Transfer Rate
10/100/1000 Mbps
Interface(s)
8 x 10/100/1000 Mbps RJ45 Ports
Auto-Negotiation/Auto MDI/MDIX
Auto-Negotiation/Auto MDI/MDIX
PoE Ports (RJ45)
-
Switching Capacity
16 Gbps
Power Supply
DC Power Adapter (Output: 5VDC / 0.6A)
Dimensions
158 x 101 x 25 mm
Transfer Method
Store-And-Forward
Mac Address Table
8K
Packet Forwarding Rate
11.9 Mpps
Packet Buffer Memory: 4 Mbit
Packet Buffer Memory: 4 Mbit
Jumbo Frame
15 KB

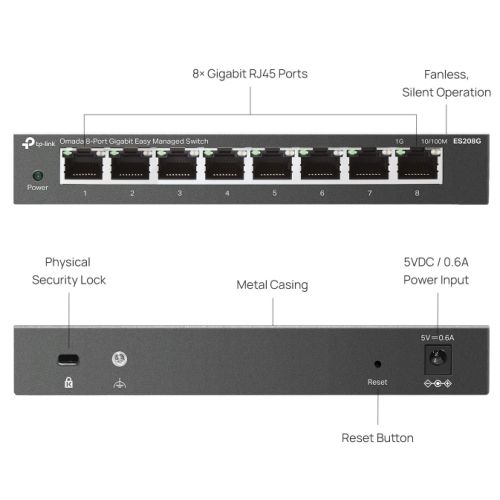

Additional Features
Durable Metal Casing

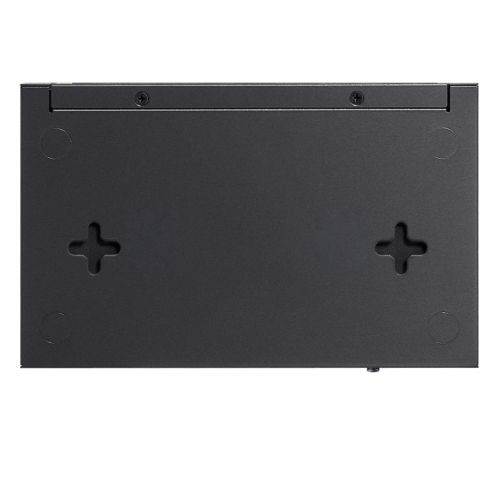

Desktop/Wall Mount
Physical Security Lock
Surge Protection: 6kV
Supports plug-and-play
Desktop/Wall Mount
Physical Security Lock
Surge Protection: 6kV
Supports plug-and-play
Quality of Service
Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control
8 Priority Queues
Priority Schedule Mode
Queue Weight Config
Bandwidth Control
Storm Control
Layer Features
L2 Features:
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDP
L2 Multicast:
IGMP Snooping
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
Mirroring
Port Statistics
802.1ab LLDP
L2 Multicast:
IGMP Snooping
VLAN
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
Port-Based VLAN
802.1Q Tag VLAN
Management
Omada App:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access:
Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning:
Requires the use of Omada Cloud-Based Controller
Management Features:
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
Environment
Operating Temperature: -5°C ~45°C
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40°C ~70°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

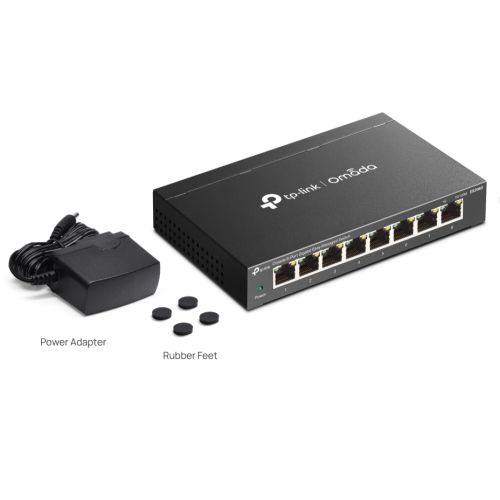

Package Contents
ES208G
Power Adapter
Rubber Feet
Installation Guide
Power Adapter
Rubber Feet
Installation Guide
Package Type
Retail
Package Weight
0.6500 kg
Warranty
Limited Lifetime
Full Box Quantity
24
Manufacturer Link
