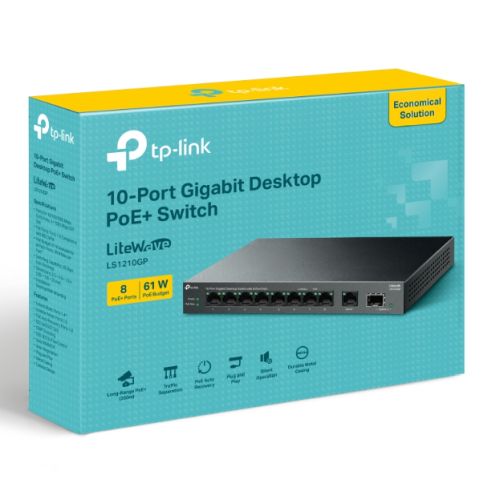

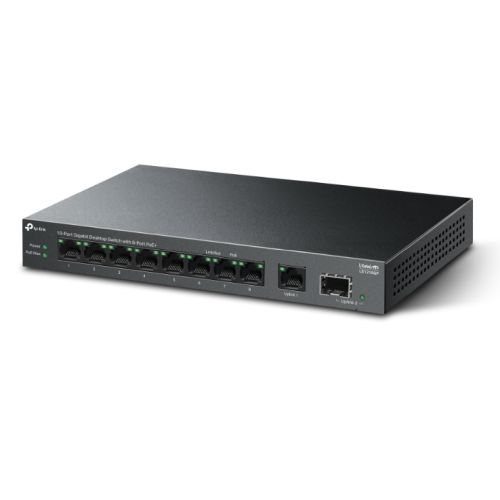

TP-LINK (LS1210GP) 10-Port Gigabit Desktop LiteWave Switch with 8-Port PoE+, GB SFP Port

+ click images to enlarge

Stock Code

SWI-10TPPOELW

Manufacturer

TP-LINK

Manufacturer Code

LS1210GP

EAN Number

4895252504576

Printable Version

5 Available

You must be logged in to view pricing and place orders

Rackmountable

Managed

Number of Ports

Max RJ45 Transfer Rate

10/100/1000 Mbps

Interface(s)

9 x 10/100/1000 Mbps RJ45
1 x Gigabit SFP Port

PoE Ports (RJ45)

Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1–8, up to 30 W PoE output per port
PoE Power Budget: 61W

Switching Capacity

20 Gbps

Power Supply

External Power Adapter (Output: 53.5VDC / 1.31A)

Dimensions

209 x 126 x 26 mm

Transfer Method

Store-And-Forward

Mac Address Table

Packet Forwarding Rate

14.88 Mpps

Jumbo Frame

16 KB

Additional Features

Extend Mode Button (Ports 1–4, Up to 250m PoE power & data transmission)
Isolation Mode Button (Ports 1–8)
PoE Auto Recovery Button (Ports 1–8)
Compatible With IEEE 802.3af/at Compliant PDs
IEEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Green Technology

Security

Physical Security Lock

Environment

Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

LS1210GP
Power Adapter
Installation Guide

Package Type

Retail

Package Weight

1.2300 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
