Networking > Range Ext. / Access Points

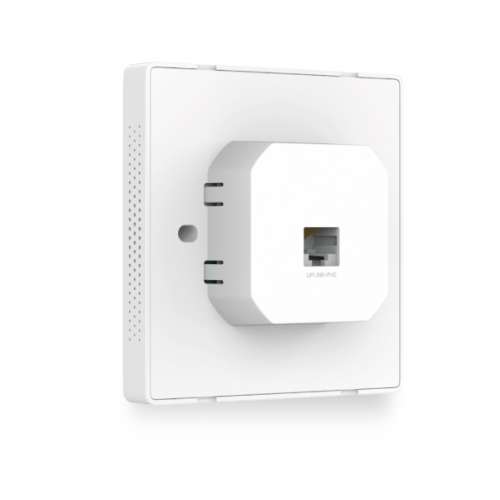

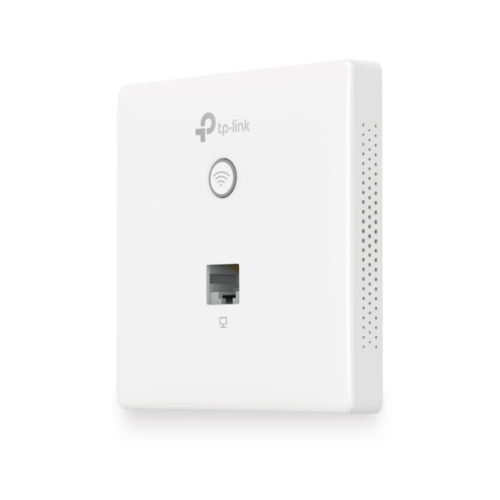

TP-LINK (EAP230-WALL) Omada AC1200 Wireless Wall Mount GB Access Point, Dual Band, PoE, MU-MIMO, Free Software

+ click images to enlarge

Stock Code

AP-1200TPEAP230-WALL

Manufacturer

TP-LINK

Manufacturer Code

EAP230-WALL

EAN Number

6935364089498

Printable Version

20 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Dual Band

Wi-Fi Rating

AC1200

Max Single Band Wi-Fi Rate

867 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

Uplink: 1 x 10/100/1000 Mbps Ethernet Port
Downlink: 1 x 10/100/1000 Mbps Ethernet Port

Wireless Standards

IEEE 802.11n/g/b/ac

Antenna(s)

2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 3.6 dBi

Button(s)

LED/Wi-Fi Button, RESET

Power Supply

802.3af/802.3at PoE

Power Consumption

7 W

Dimensions

86.8 x 86.8 x 30.2 mm

Weatherproof

Frequency

2.4GHz: 300 Mbps
5GHz: 867 Mbps

Wireless Functions

16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
MU-MIMO
Band Steering
Beamforming

Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Management

Omada App
Omada Cloud-Based Controller
Omada Hardware & Software Controller
Cloud Access
Email Alerts
LED ON/OFF Control
MAC Access Control
SNMP v1,v2c
Local/Remote Syslog
SSH
HTTP/HTTPS
L3
Multi-site Management
Management VLAN

Additional Features

See Overview

Environment

Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents

Omada AC1200 Gigabit Wall-Plate Access Point
Installation Guide
Mounting Screw

Package Type

Retail

Package Weight

0.2160 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
