TP-LINK (TL-WA1201) AC1200 (867+300) Dual Band Wireless Access Point, MU-MIMO, Multi-mode - Range Extender, Multi-SSID, Client

+ click images to enlarge

Stock Code

AP-1200TPWA1201

Manufacturer

TP-LINK

Manufacturer Code

TL-WA1201

EAN Number

6935364052836

Printable Version

34 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Dual Band

Wi-Fi Rating

AC1200

Max Single Band Wi-Fi Rate

867 Mbps

Max Wired Transfer Rate

10/100/1000 Mbps

Interface(s)

1 x 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)

Wireless Standards

IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

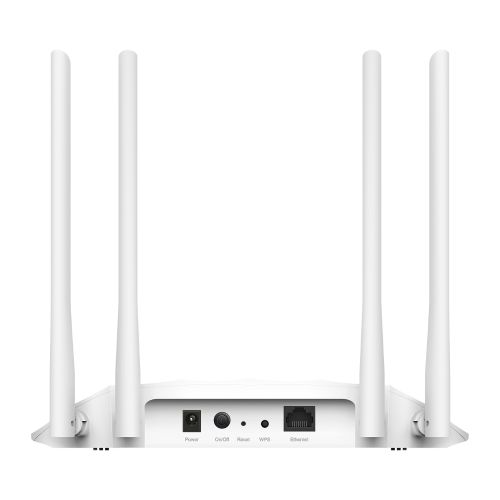

Antenna(s)

4 x Fixed High Performance Antennas

Button(s)

Power On/Off Button, WPS Button, Reset Button

Power Supply

12V/1.5A

Dimensions

400 x 255 x 72 mm

Weatherproof

Frequency

2.4 GHz and 5 GHz

Reception Sensitivity

5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Wireless Modes

Access Point, Range Extender, Client, Multi-SSID

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP

Yes

Quality of Service

WMM

Additional Features

Captive Portal

Environment

Operating Temperature: 0°C~40°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents

Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector

Package Type

Retail

Package Weight

0.8620 kg

Warranty

3 Years

Full Box Quantity
