Networking > Range Ext. / Access Points

TP-LINK (EAP725-WALL) BE3600 Dual Band Wall Plate Wi-Fi 7 Access Point, PoE, 2.5GB Ports, 160MHz Bandwidth, Omada Mesh, Multi-RUs
+ click images to enlarge


Stock Code
AP-3600TPEAP725-WALL
Manufacturer
TP-LINK
Manufacturer Code
EAP725-WALL
EAN Number
1210002607582
Printable Version
26 Available
You must be logged in to view pricing and place orders
Primary Function
Access Point
Bands
Dual Band
Wi-Fi Rating
BE3600
Max Single Band Wi-Fi Rate
2882 Mbps
Max Wired Transfer Rate
2.5 Gbps

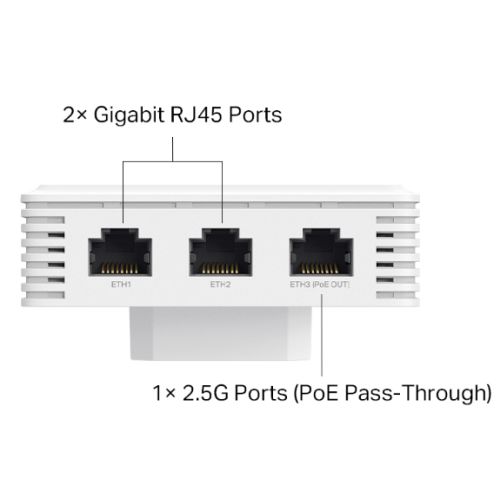

Interface(s)

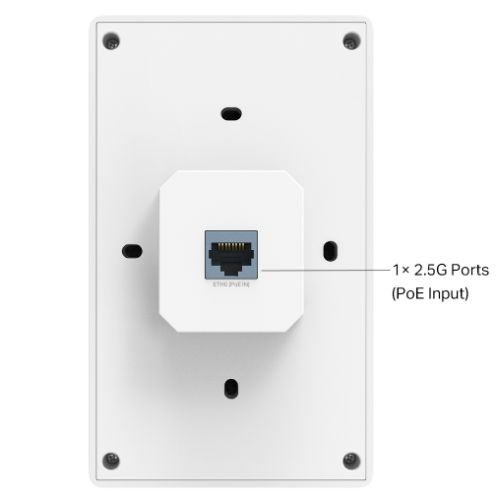

Uplink: 1 x 2.5G Ethernet
Downlink: 1 x 2.5G Ethernet + 2 x Gigabit Ethernet
(The 2.5G port supports PoE pass-through - requires 802.3at/bt input. If power consumption of the APs downstream device exceeds 7W, the AP needs an 802.3bt input)
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Antenna(s)
4 x Internal Antennas:
2.4GHz: 2x 4 dBi
5GHz: 2x 5 dBi
Button(s)
Reset, LED
Power Supply
802.3at/bt PoE
Power Consumption
802.3bt: 17W (PoE Out support 15.4W)
802.3at: 17W (PoE Out support 7W)
Dimensions
143 x 86 x 40 mm
Weatherproof
No
Frequency
2.4GHz: Up to 688 Mbps
5GHz: Up to 2882 Mbps
EIRP
<20 dBm (2.4GHz, EIRP)
<23 dBm (5GHz, band 1 & band 2, EIRP)
<25 dBm (5GHz, band 3, EIRP)
Wireless Functions
6 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
Rate Limit (Based on SSID/Client)
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Management
Omada App
Centralized Management (Cloud-Based, Hardware, Software Controller)
Cloud Access - Requires controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog
SSH
Web-based Management
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning (Requires Omada Cloud-Based Controller)
Additional Features
Wall Mounting (Kits included)
Coverage: 50m sq.
Concurrent Clients: 250+
160 MHz bandwidth
Multi-RUs
Environment
Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents
BE3600 Wall Plate Wi-Fi 7 Access Point
Installation Guide
Mounting Kits
Package Type
Retail
Package Weight
0.4800 kg
Warranty
Limited Lifetime
Full Box Quantity
30
Manufacturer Link
Click here for more details from the manufacturer
