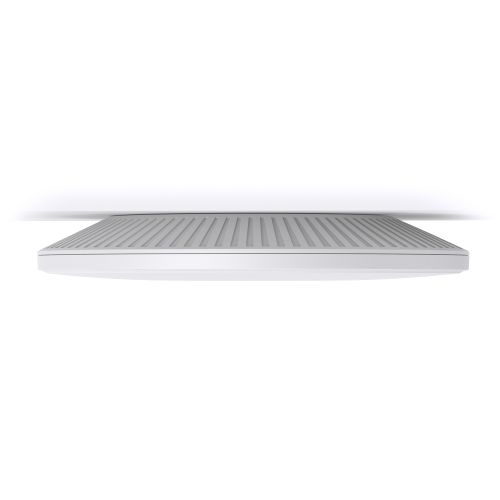

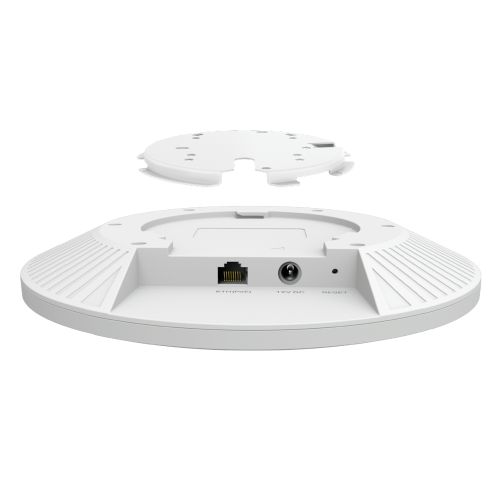

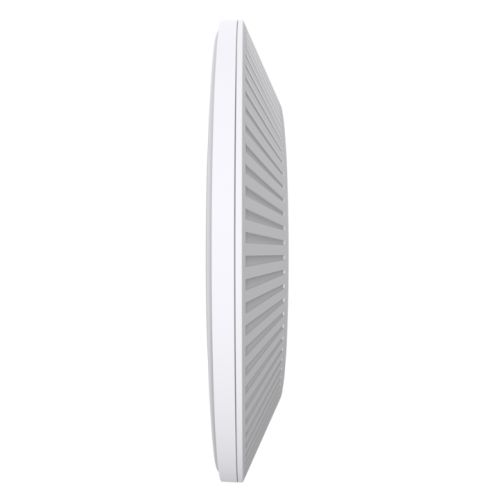

TP-LINK (EAP673) AX5400 Dual Band Ceiling Mount Wi-Fi 6 Access Point, PoE+, Omada Mesh, 2.5G LAN

+ click images to enlarge

Stock Code

AP-5400TPEAP673

Manufacturer

TP-LINK

Manufacturer Code

EAP673

EAN Number

4895252506495

Printable Version

9 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Dual Band

Wi-Fi Rating

AX5400

Max Single Band Wi-Fi Rate

4804 Mbps

Max Wired Transfer Rate

2.5 Gbps

Interface(s)

1 x 2.5 Gigabit Ethernet (RJ-45) Port
Supports IEEE802.3at PoE

Antenna(s)

Internal Omni:
2.4 GHz: 2x 4 dBi
5 GHz: 4x 5 dBi

Button(s)

Reset

Power Supply

802.3at PoE
12 V / 2 A DC (Power adapter not included)

Power Consumption

20.8 W

Weatherproof

Frequency

5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 574 Mbps

EIRP

<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)

Wireless Functions

1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Security

Captive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Management

Omada App
Centralized Management
Omada Hardware Controller (OC200 & OC300)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access - Requires controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog
Web-based Management
SSH
Web-based Management: HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN
Zero-Touch Provisioning - Requires Cloud-Based Controller

Environment

Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

EAP673
Ceiling/Wall Mounting Kits
Installation Guide

Package Type

Retail

Package Weight

1.3300 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
