TP-LINK (EAP772) BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, PoE, 2.5GB Port, Omada Mesh, MLO, Multi-RUs
+ click images to enlarge
Stock Code
AP-9300TPEAP772
Manufacturer
TP-LINK
Manufacturer Code
EAP772
EAN Number
8885020623062
Printable Version
Out of Stock: call for information
You must be logged in to view pricing and place orders
Primary Function
Access Point
Bands
Tri Band
Wi-Fi Rating
BE9300
Max Single Band Wi-Fi Rate
5760 Mbps
Max Wired Transfer Rate
2.5 Gbps

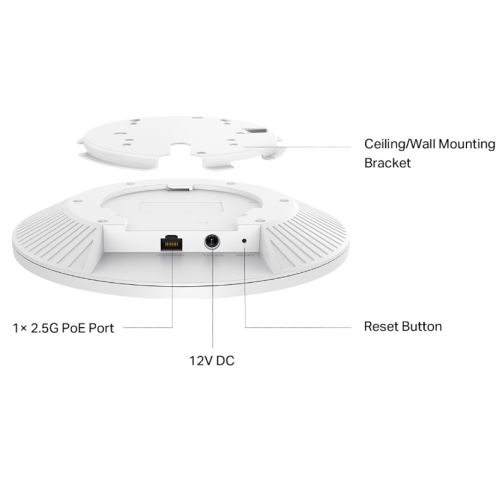

Interface(s)
1 x 2.5G Ethernet Port
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Antenna(s)
2.4 GHz: 2x 4.0 dBi
5 GHz: 2x 5.0 dBi
6 GHz: 2x 5.0 dBi
Button(s)
Reset
Power Supply
802.3at PoE or 12V/2.5A DC
NOTE: Power Adapter is NOT included.
Power Consumption
24.05 W (For PoE)
20.92 W (For DC)
Dimensions
220 x 220 x 32.5 mm
Weatherproof
No
Frequency
2.4GHz: Up to 574 Mbps
5GHz: Up to 2880 Mbps
6GHz: Up to 5760 Mbps
Wireless Functions
MLO
4K-QAM
Seamless Roaming(802.11k/v/r)
MU-MIMO
EHT320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication
Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Management
Omada App
Centralized Management
Omada Hardware Controller (OC200 & OC300)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access - Requires controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog
Web-based Management
Additional Features
See Overview
Environment
Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents
EAP772
Installation Guide
Ceiling/Wall Mounting Kit
Note: Power Adapter is NOT included.
Package Type
Retail
Package Weight
1.3400 kg
Warranty
Limited Lifetime
Full Box Quantity
6
Manufacturer Link
Click here for more details from the manufacturer
