Networking > Range Ext. / Access Points

TP-LINK (EAP773) BE9300 Tri-Band Ceiling Mount Wi-Fi 7 Access Point, PoE++, 10GB Port, Omada Mesh, MLO, Multi-RUs

+ click images to enlarge

Stock Code

AP-9300TPEAP773

Manufacturer

TP-LINK

Manufacturer Code

EAP773

EAN Number

4895252506518

Printable Version

12 Available

You must be logged in to view pricing and place orders

Primary Function

Access Point

Bands

Tri Band

Wi-Fi Rating

BE9300

Max Single Band Wi-Fi Rate

5760 Mbps

Max Wired Transfer Rate

10 Gbps

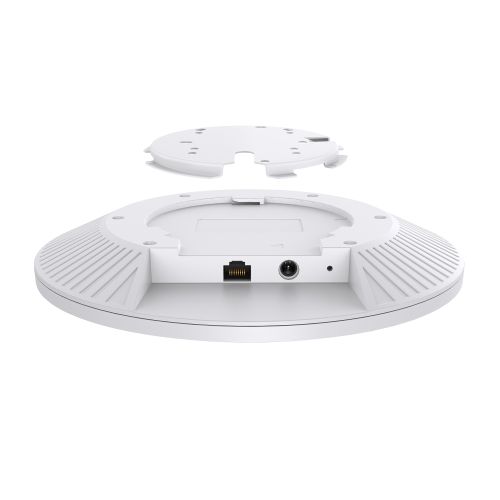

Interface(s)

1 x 10G Ethernet Port

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Antenna(s)

2.4 GHz: 2x 3.0 dBi
5 GHz: 2x 3.0 dBi
6 GHz: 2x 3.0 dBi

Button(s)

Reset

Power Supply

802.3bt PoE or 12V/2.5A DC
NOTE: Power Adapter is NOT included.

Power Consumption

25.94 W (802.3bt, full functionality)
22.57 W (12/2.5A, full functionality)
23.4 W (802.3at decrease 6GHz Power)
10.1 W (802.3af, radio off, only main chip and LAN working)

Dimensions

220 x 220 x 32.5 mm

Weatherproof

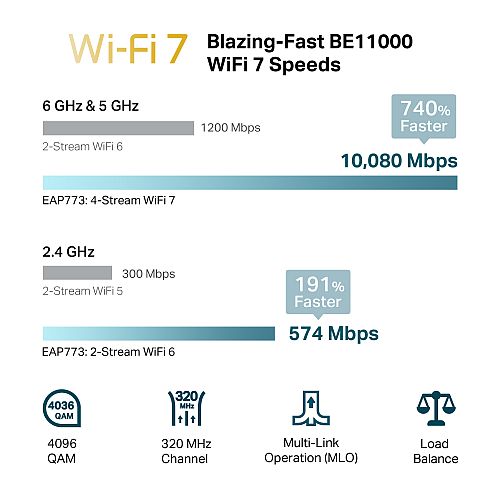

Frequency

2.4GHz: Up to 574 Mbps
5GHz: Up to 4320 Mbps
6GHz: Up to 5760 Mbps

Wireless Functions

MLO
4K-QAM
MU-MIMO
HE320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication

Security

Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

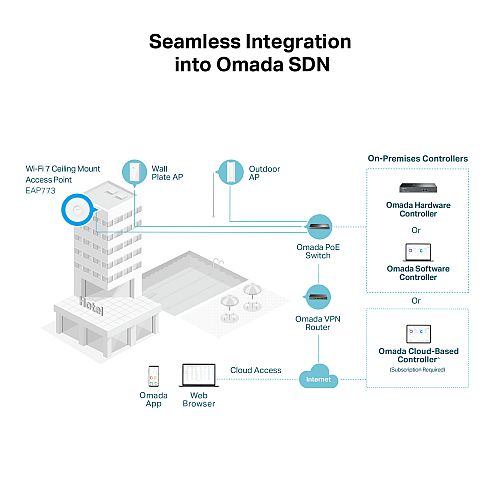

Management

Omada App
Centralized Management
Omada Hardware Controller (OC200 & OC300)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access - Requires controller
Email Alerts
LED ON/OFF Control
Management MAC Access Control
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog
Web-based Management

Additional Features

See Overview

Environment

Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents

EAP773
Installation Guide
Ceiling/Wall Mounting Kits
NOTE: Power Adapter is NOT included.

Package Type

Retail

Package Weight

1.5500 kg

Warranty

Limited Lifetime

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
