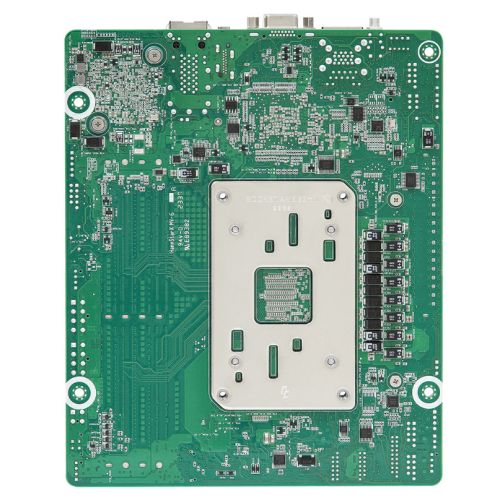

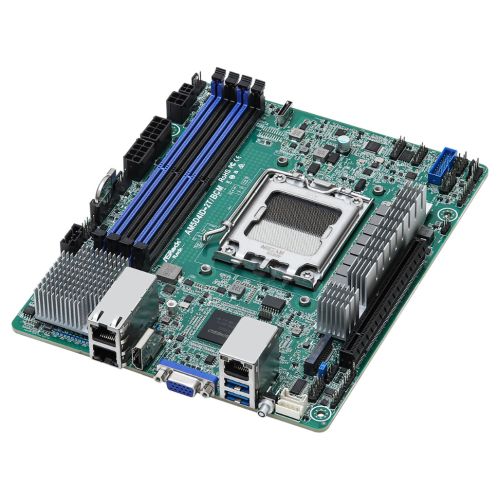

Asrock Rack AM5D4ID-2T/BCM, AM5, Deep Mini ITX, 4 DDR5, 2x 10G Broadcom LAN, PCIe 5.0, VGA, HDMI, IPMI Remote Management, 1x M.2
+ click images to enlarge
Special Offer
Stock Code
ARMBAM5D4ID-2TBCM
Manufacturer
ASROCK_RACK
Manufacturer Code
AM5D4ID-2T/BCM
Printable Version
Out of Stock: Pre-Order Only
You must be logged in to view pricing and place orders
Motherboard Type
Server / Workstation
Form Factor
Deep Mini ITX
Socket
AMD AM5
Chipset
AMD Knoll3 X300
CPU Support
Supports AMD EPYC 4004 & Ryzen 9000/8000/7000 Series CPUs
Thermal Design Power: 120W (Air)/170W (Liquid)
Click here for CPU support list
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM: 48GB
5200 MHz (1DPC); 3600 MHz (2DPC)
Voltage: 1.1V
Maximum Memory
192GB
Graphics
Yes
Graphics Ports
ASPEED AST2600: 1 x DB15 (VGA)
AMD Processors with Graphics: 1 x HDMI
PCI/PCI Express
1 x PCIe 5.0 x16
1 x 1 OCuLink (PCIe 4.0 x2)
Storage
1 x M.2 (2280) - PCIe4.0 x4
RAID
Yes
Wireless
-
LAN
Dual 10G LAN & Dedicated IPMI LAN port
USB Ports Supported
Rear:
2 x USB3.2 Gen1 Type-A

Front:
2 x USB3.2 Gen1 Type-A

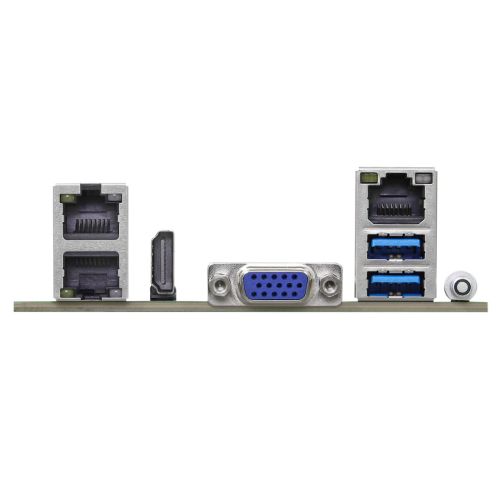

Back Panel I/O Ports
1 x UID button w/ LED
1 x DB15 (VGA)
1 x HDMI
2 x USB 3.2 Gen1 Type-A
2 x RJ45 (10GbE)
1 x Dedicated IPMI RJ45
Internal I/O Connectors
1 x (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable
2 x (8-pin, ATX 12V) support 12V DC-in
1 x (4-pin) for HDD power when using 12V DC-in power source
1 x (9-pin) Auxiliary Panel
1 x (9-pin) System
1 x COM
1 x Speaker
3 x Fan Header (4-pin)
1 x Thermal Sensor
1 x TPM (13-pin, SPI)
1 x SMBus

1 x PMBus
1 x IPMB
1 x Clear CMOS
1 x UID (4-pin)
1 x NCSI (4-pin)
1 x IPMI LAN LED (4-pin)
1 x 80 debug port (13-pin)
1 x USB 3.2 Gen1 (19-pin)
Additional Features
See manufacturers website for more details
Package Type
Retail
Package Weight
1.0100 kg
Warranty
3 Years
Full Box Quantity
1
Manufacturer Link
Click here for more details from the manufacturer
