Components > Motherboards

Asrock Rack B650D4U-2L2T/BCM, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x 10G LAN, IPMI Remote Management, PCIe5, 1x M.2
+ click images to enlarge

NOTE:
AMD 8000 series CPUs may require a BIOS update


Special Offer
Stock Code
ARMBB650D4U-2L2TBCM
Manufacturer
ASROCK_RACK
Manufacturer Code
B650D4U-2L2T/BCM
EAN Number
4711430520964
Printable Version
Out of Stock: Pre-Order Only
You must be logged in to view pricing and place orders
Motherboard Type
Server / Workstation
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD B650E
CPU Support
Supports AMD Ryzen 7000 series Processors
Single Socket AM5 (LGA 1718)
Up to 170W with proper cooling solution

Click here for CPU support list
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
RAM Speeds
5200MHz (1DPC); 3600MHz (2DPC)
ECC/non-ECC UDIMM
Maximum Memory
96GB
Graphics
Yes
Graphics Ports
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header

AMD Processors with Graphics:
1 HDMI, 1 DisplayPort
PCI/PCI Express
PCIe x 16 - SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4 - SLOT7: PCIe5.0 x4 [CPU]
PCIe x 1 - SLOT4: PCIe4.0 x1 [FCH]
Storage
4 x SATA III
1 x M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
RAID
Yes
Wireless
-
LAN
Dual 10GB LAN & Dual GB LAN
USB Ports Supported
4 x USB 3.2 Gen1 Type- A (at back)

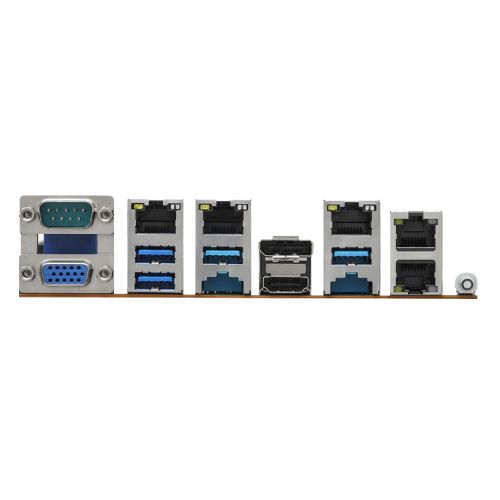

Back Panel I/O Ports
1 x UID button w/ LED
1 x DB15 (VGA)
1 x DisplayPort
1 x HDMI
1 x Serial Port DB9
4 x USB3.2 Gen1 Type-A
2 x RJ45 (10GbE)
2 x RJ45 (1GbE)
1 x dedicated IPMI
Internal I/O Connectors
1 x 24-pin, ATX main power
2 x 8-pin, ATX 12V
1 x Auxiliary Panel Header (18-pin)
1 x System Panel
1 x VGA header
1 x Speaker Header
1 x Buzzer
7 x Fan Header (6-pin)
1 x TPM Header (13-pin, SPI)
1 x SMBus header
1 x PMBus header
1 x IPMB Header

1 x Clear CMOS
1 x 3-pin, 80 debug port header
1 x Front Lan LED Connector
Additional Features
See Overview
Package Type
Retail
Package Weight
1.2820 kg
Warranty
3 Years
Full Box Quantity
1
Manufacturer Link
Click here for more details from the manufacturer
