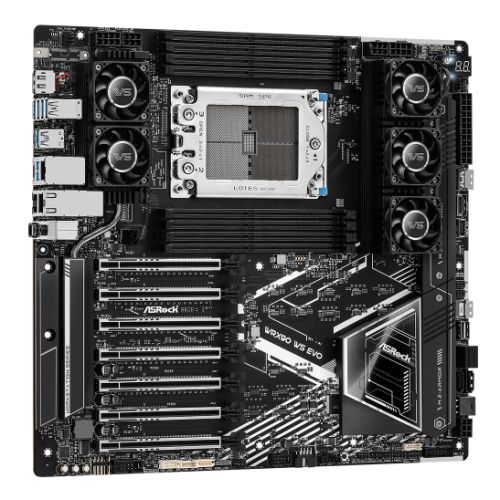

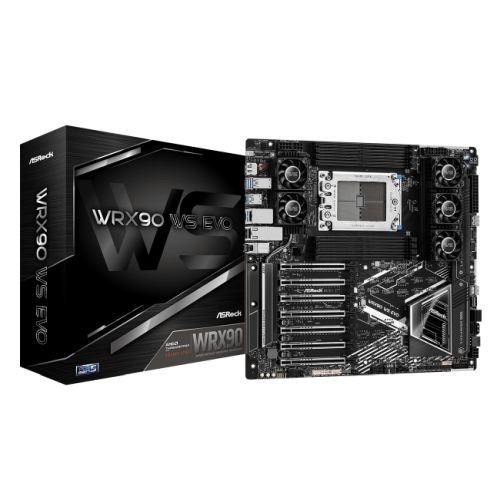

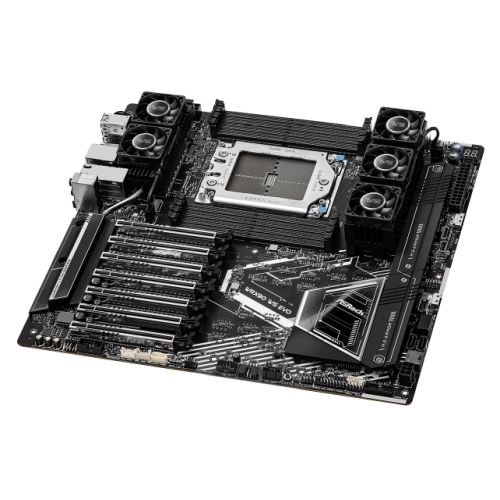

Asrock WRX90 WS EVO, Workstation, AMD WRX90, sTR5, EEB, 8 DDR5 ECC, Dual 10G LAN, SlimSAS, MCIO, 7x PCIe5 x16, 2x M.2

+ click images to enlarge

Stock Code

ASMBWRX90WSEVO

Manufacturer

ASROCK

Manufacturer Code

WRX90 WS EVO

EAN Number

4710483945199

Printable Version

2 Available

You must be logged in to view pricing and place orders

Motherboard Type

Server / Workstation

Form Factor

EEB

Socket

AMD sTR5

Chipset

AMD WRX90

CPU Support

Click here for CPU support

RAM Technology

Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS)

RAM Slots

8 x DIMM

RAM Speeds

Up to 7600+(OC)

Maximum Memory

2048GB

Graphics

Aspeed AST2600 BMC Controller

Graphics Ports

1 x DisplayPort 1.1a with max. resolution up to 1920x1200 @ 60Hz
- does not support audio function

PCI/PCI Express

7 x PCIe 5.0 x16 (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)

Storage

4 x SATA III
1 x M.2 (2260/2280/22110) - PCIe 5.0 x4
1 x M.2 (2260/2280) - PCIe 4.0 x4
2 x MCIO (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s)
1 x SlimSAS SFF-8654 (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
1 x SlimSAS SFF-8654 (SLIM2) (PCIe Gen4x4)

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless

LAN

Dual 10G LAN & Dedicated IPMI LAN port

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

USB Ports Supported

Rear:
2 x USB4 Type-C
4 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A

Front:
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

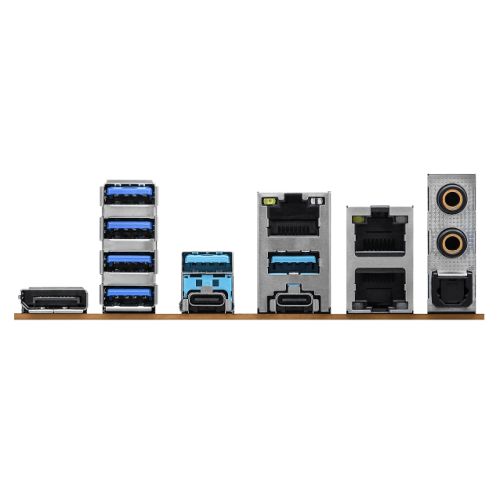

Back Panel I/O Ports

1 x DisplayPort 1.1a
1 x Optical SPDIF Out
2 x USB4 Type-C (40 Gb/s)
4 x USB 3.2 Gen2 Type-A (10 Gb/s)
2 x USB 3.2 Gen1 Type-A
2 x RJ-45 LAN
1 x RJ45 Dedicated IPMI LAN Port
1 x Line Out Jack
1 x Microphone Input Jack

Internal I/O Connectors

2 x Thermistor Cable
1 x Front VGA
1 x COM Port
1 x Power LED and Speaker
1 x Intelligent Platform Management Bus
1 x PSU SMBus
1 x BMC SMBus
1 x Auxiliary Panel
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
3 x Chassis/Water Pump Fan

1 x 24 pin ATX
1 x 3 pin ATX
2 x 8 pin ATX 12V
2 x 6 pin PCIe 12V
2 x 6 pin Graphics 12V
1 x Right Angle Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2
2 x SGPIO

1 x CPU HP-SMBus
1 x Non Maskable Interrupt Button
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Clear CMOS Button

Accessories

1 x User Manual
1 x I/O Shield
4 x SATA Data Cables
2 x Thermistor Cables
1 x Multi PSU Adaptor Cable
2 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets

Additional Features

See Overview

Package Type

Retail

Package Weight

3.6200 kg

Warranty

3 Year Replacement Warranty

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
