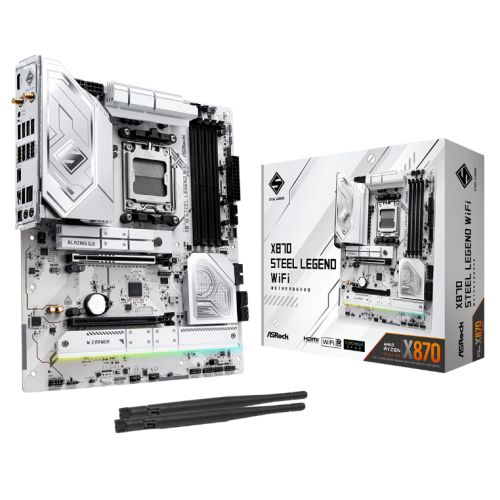

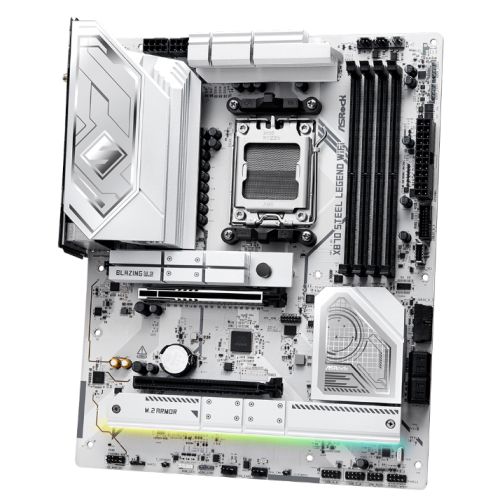

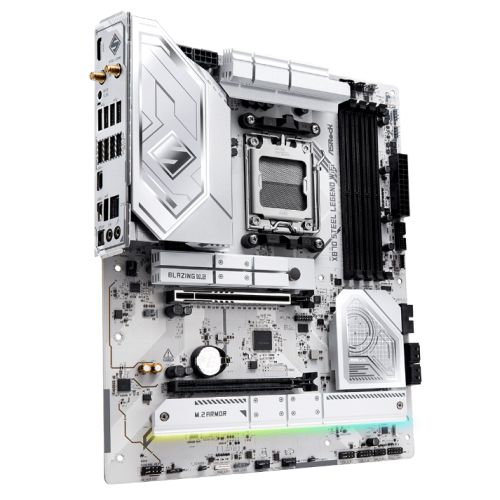

Asrock X870 STEEL LEGEND WIFI, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 2.5G LAN, RGB, 3x M.2

+ click images to enlarge

Stock Code

ASMBX870STEELLEGENDWIFI

Manufacturer

ASROCK

Manufacturer Code

X870 STEEL LEGEND WIFI

EAN Number

4710483949340

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD X870

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory
Supports XMP and EXPO memory modules

RAM Slots

4 x DIMM

RAM Speeds

Up to 8000+(OC)

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
2 x USB4 (40Gbps) support USB Type-C display outputs

Multi-GPU Support

Supports AMD CrossFire

PCI/PCI Express

1 x PCIe 5.0 x16 (PCIE1), supports x16 mode*
1 x PCIe 4.0 x16 (PCIE2), supports x4 mode*
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

* PCIE1 will run at Gen5x16 with 9000 and 7000 series CPUs, Gen4x8 with 8000 (Phoenix 1) series CPUs and Gen4x4 with 8000 (Phoenix 2) series CPUs.

Storage

4 x SATA III
3 x M.2

M.2_1 (2280) - PCIe 5.0 x4*
M.2_2 (2230/2260/2280) - PCIe 4.0 x4*
M.2_3 (2260/2280) - PCIe 4.0 x4*

* M2_1 is the first priority for M.2 installation.
* M2_1 will run at Gen5x4 with 9000 and 7000 series CPUs and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series CPUs.
* If M2_3 is occupied, PCIE2 will be disabled.

RAID

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless

802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 160MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.4
Supports MU-MIMO

LAN

2.5GB LAN

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)

USB Ports Supported

Rear:
2 x USB4 (40Gbps) Type-C (up to 15W PD 3.0)
2 x USB 10Gbps Type-A (USB32_34 supports Ultra USB Power)
3 x USB 5Gbps Type-A (USB32_12 are Lightning Gaming Ports)
4 x USB 2.0

Front:
1 x USB 20Gbps Type-C
4 x USB 5Gbps Type-A
4 x USB 2.0

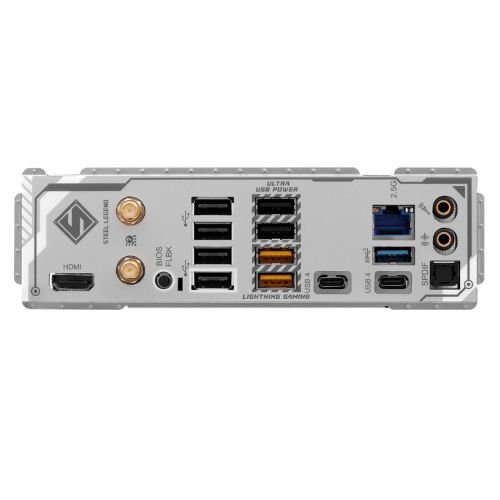

Back Panel I/O Ports

2 x Antenna
1 x HDMI
1 x Optical SPDIF Out
2 x USB4 Type-C (40 Gb/s)*
3 x USB 3.2 Gen1 Type-A
2 x USB 3.2 Gen2 Type-A
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack

Internal I/O Connectors

1 x Thermistor Cable
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
3 x Chassis Fan
1 x AIO Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0

2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2

Accessories

2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Thermistor Cable

Additional Features

See Overview

Package Type

Retail

Package Weight

2.3100 kg

Warranty

3 Year Replacement Warranty
