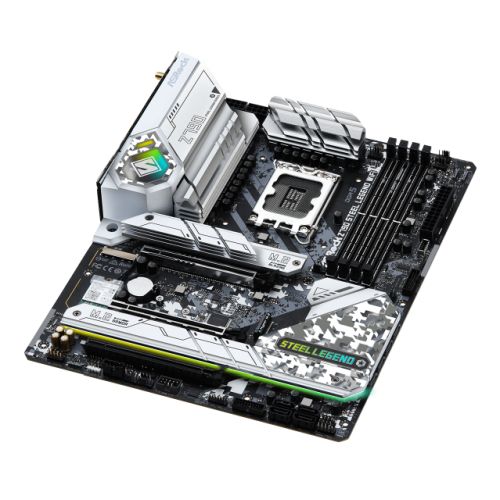

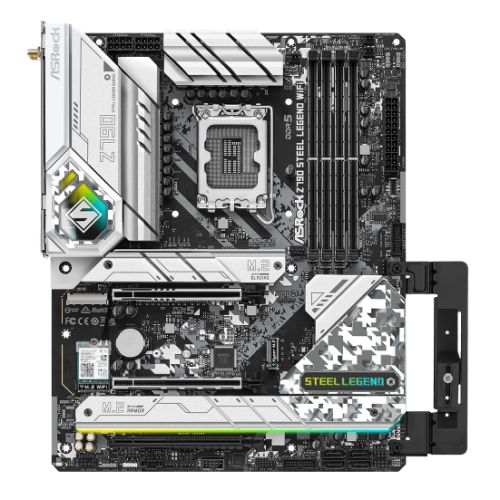

Asrock Z790 STEEL LEGEND WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 5x M.2

+ click images to enlarge

NOTE:
Intel 14th gen CPUs may require a BIOS update

Stock Code

ASMBZ790STEELLEGENDWIFI

Manufacturer

ASROCK

Manufacturer Code

Z790 STEELLEGENDWIFI

EAN Number

4710483940859

Printable Version

Out of Stock: call for information

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1700

Chipset

Intel Z790

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 6800+(OC)

Maximum Memory

256GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort
1 x eDP 1.4

Multi-GPU Support

Supports AMD CrossFire

PCI/PCI Express

1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 3.0 x16

Storage

8 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Wireless

802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth + High speed class II
Supports MU-MIMO

LAN

2.5GB LAN

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported

1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
12 x USB 3.2 Gen1 (8 at back, 4 at mid-board)
3 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header

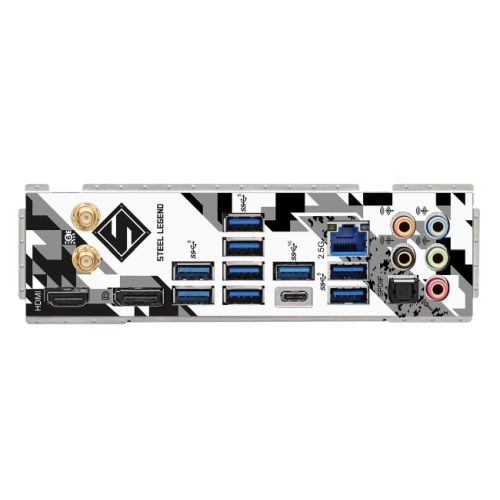

Back Panel I/O Ports

2 x Antenna
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
8 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors

1 x eDP Signal
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC

2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2

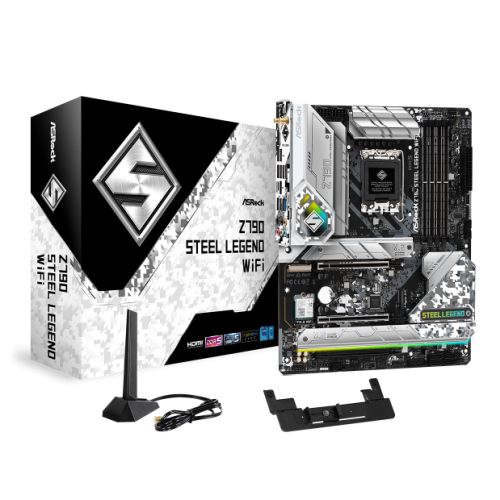

Accessories

1 x User Manual
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
4 x Screws for M.2 Sockets
1 x Graphics Card Holder

Additional Features

See Overview

Package Type

Retail

Package Weight

2.6440 kg

Warranty

3 Year Replacement Warranty

Full Box Quantity
