Components > Motherboards

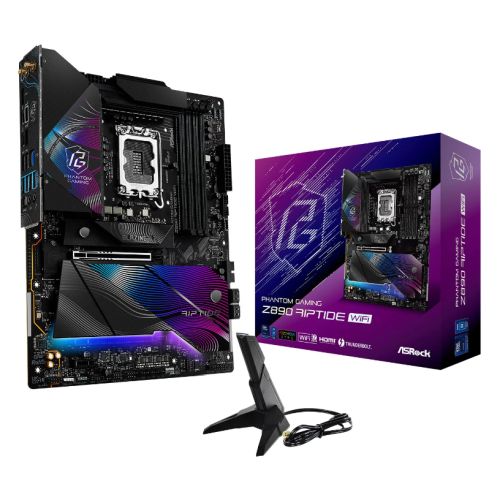

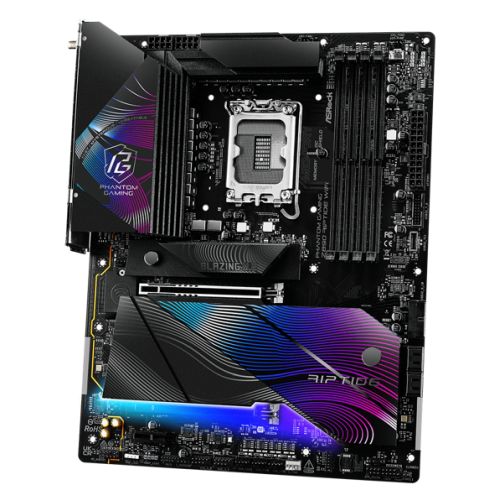

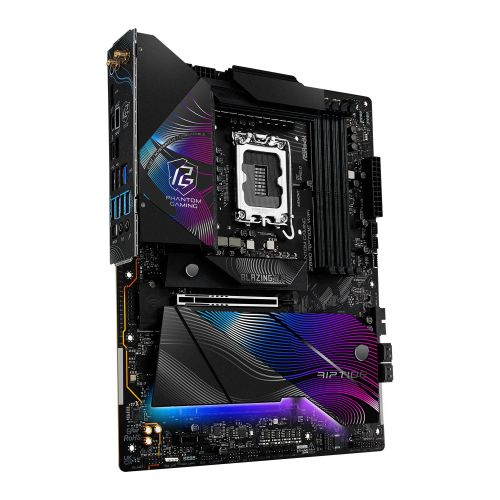

Asrock Z890 RIPTIDE WIFI, Intel Z890, 1851, ATX, 4 DDR5, HDMI, 2 TB4, Wi-Fi 7, 2.5G LAN, RGB, 5x M.2

+ click images to enlarge

Stock Code

ASMBZ890RIPTIDEWIFI

Manufacturer

ASROCK

Manufacturer Code

Z890 RIPTIDE WIFI

EAN Number

4710483949647

Printable Version

10 Available

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1851

Chipset

Intel Z890

CPU Support

Support Intel Core Ultra Processors (Series 2)
Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Supports Intel XMP

RAM Slots

4 x DIMM

RAM Speeds

Up to 9066MHz+(OC)

Maximum Memory

256GB

Graphics

Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
2 x Thunderbolt 4

PCI/PCI Express

Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16 (supports x16 mode)*

Intel Z890 Chipset:
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1

* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.

Storage

4 x SATA III
5 x M.2

Intel Core Ultra CPUs (Series 2):
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (2280) - PCIe 4.0 x4

Intel Z890 Chipset:
M.2_3 (2280) - PCIe 4.0 x4
M.2_4 (2280) - PCIe 4.0 x4
M.2_5 (2230/2242/2260/2280) - PCIe 4.0 x4 & SATA

RAID

Supports RAID 0, 1, 5 and 10 for SATA storage devices
Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices

Wireless

802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band*
Supports 320MHz channel bandwidth with 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.4
Supports MU-MIMO

LAN

2.5GB LAN

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

USB Ports Supported

Rear:
2 x Thunderbolt 4 (USB Type-C) (up to 15W PD 3.0)
2 x USB 10Gbps Type-A
4 x USB 5Gbps Type-A
2 x USB 2.0

Front:
1 x USB 20Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

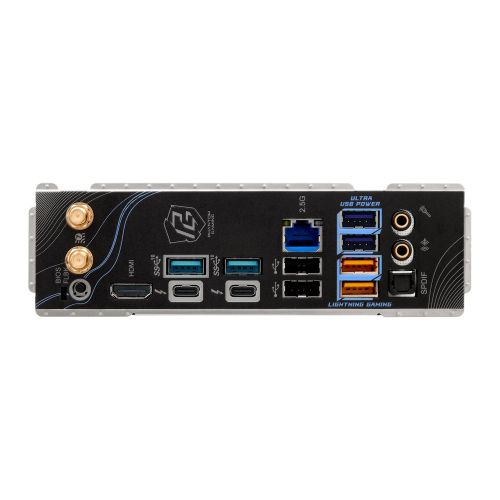

Back Panel I/O Ports

2 x Antenna
1 x HDMI Port
1 x Optical SPDIF Out
2 x Thunderbolt 4 Type-C (40 Gb/s)
2 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack

Internal I/O Connectors

1 x Thermistor Cable
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
4 x Chassis Fan
1 x AIO Pump Fan
1 x Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V

1 x Front Panel Audio
2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2

Accessories

2 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
1 x Thermistor Cable

Additional Features

See Overview

Package Type

Retail

Package Weight

2.5000 kg

Warranty

3 Year Replacement Warranty

Full Box Quantity
