Components > Motherboards

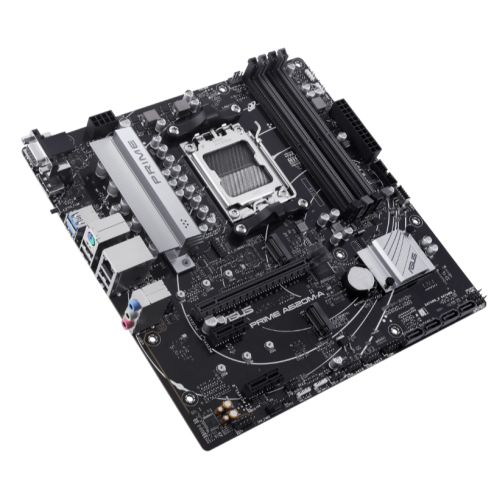

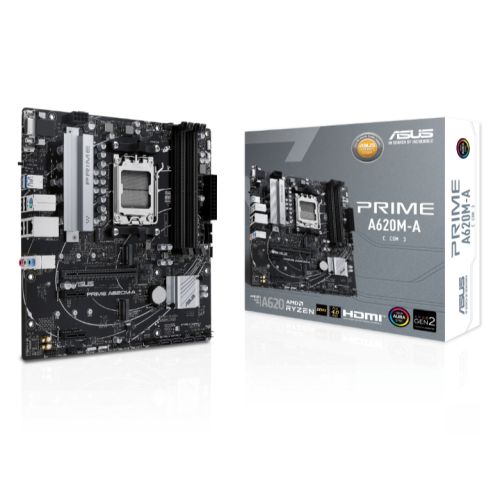

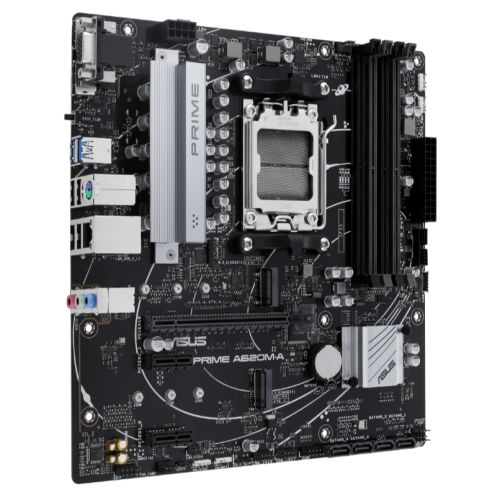

Asus PRIME A620M-A-CSM - Corporate Stable Model, AMD A620, AM5, Micro ATX, 4 DDR5, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

+ click images to enlarge

NOTE:
AMD 8000 series CPUs may require a BIOS update


Special Offer
Stock Code
AUMBA620MACSM
Manufacturer
Manufacturer Code
90MB1F10-M0EAYC
EAN Number
4711387176405
14 Available
You must be logged in to view pricing and place orders
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD A620
CPU Support
Click here for CPU support
RAM Technology
DDR5 (Dual Channel)
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
RAM Slots
4 x DIMM
RAM Speeds
Up to 7600+(OC)
Maximum Memory
192GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports
1 x VGA
1 x HDMI
1 x DisplayPort
PCI/PCI Express
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
RAID
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Wireless
-
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
Rear:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0

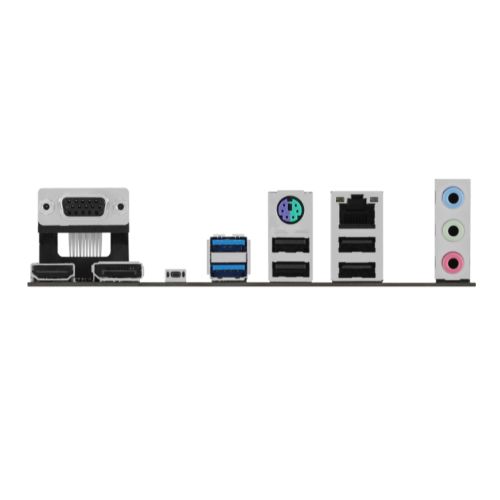

Back Panel I/O Ports
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS

1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
1 x Screw package for M.2 SSD
1 x ACC Express Activation Key Card
1 x User guide
Additional Features
See Overview
Package Type
Retail
Package Weight
1.3000 kg
Warranty
3 Years
Full Box Quantity
10
