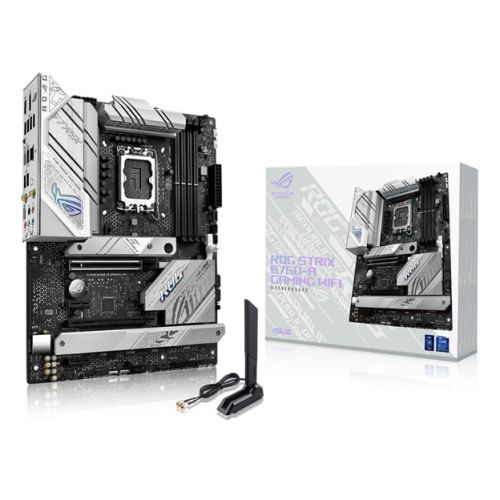

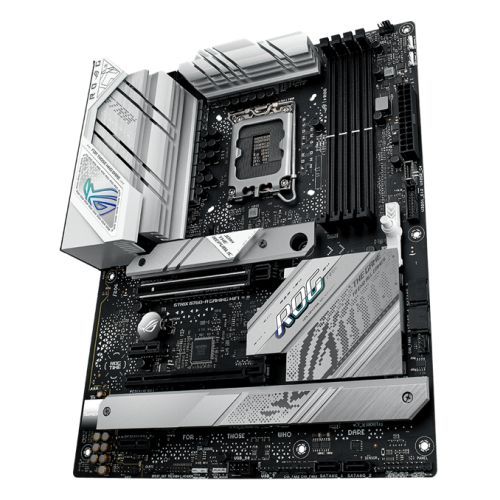

Asus ROG STRIX B760-A GAMING WIFI, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2, RGB

+ click images to enlarge

Supports Intel 14th gen CPUs out of the box
No BIOS update needed

Stock Code

AUMBB760ASTWIV2

Manufacturer

ASUS

Manufacturer Code

90MB1EP0-M1EAY0

EAN Number

4711387114063

Printable Version

Out of Stock: ETA 20/12/2024

You must be logged in to view pricing and place orders

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)

RAM Slots

4 x DIMM

RAM Speeds

Up to 7800+(OC)

Maximum Memory

192GB

Graphics

Integrated Graphics*

*Graphics specifications may vary between CPU types

Graphics Ports

1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 5.0 x16
1 x PCIe 3.0 x16 (supports x4 mode)
2 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

LAN

2.5GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

USB Ports Supported

1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
1 x USB 3.2 Gen1 Type-C (at back)
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
7 x USB 2.0 (4 at back, 3 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header

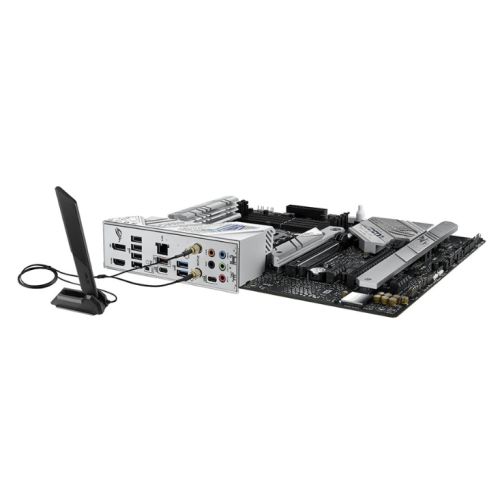

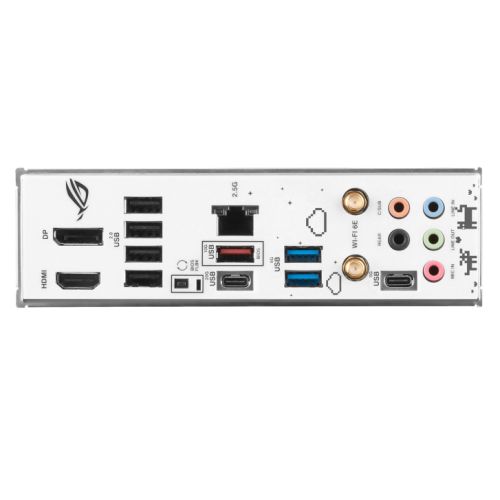

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
1 x USB 2.0 & 1 x USB 2.0 5-1 pin

3 x Addressable Gen2
1 x Aura RGB
1 x Clear CMOS
1 x Front Panel Audio
1 x S/PDIF Out
1 x 20-5 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt (USB4)

Accessories

2 x SATA 6Gb/s cables
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x M.2 Rubber Packages
1 x User guide

Additional Features

See Overview

Package Type

Retail

Package Weight

2.1000 kg

Warranty

3 Years

Full Box Quantity

Manufacturer Link

Click here for more details from the manufacturer
